60 mm Cage Systems

 60 mm Cage Mirror Mounts

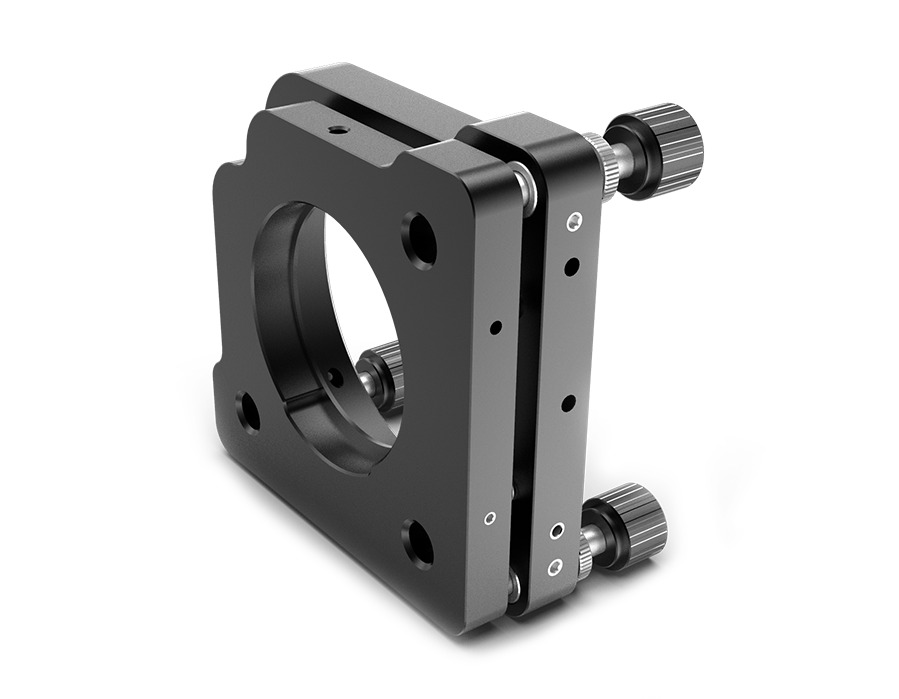

60 mm Cage Mirror Mounts

The cage rod holes in the front plate are sufficiently oversized to allow ±3° tip and tilt adjustment without cage rod interference. Once the desired position is achieved, locking setscrews on the rear plate can be used to secure the rods in place. In addition to being compatible with 60 mm cage systems, posts can also be mounted through M4 tapped holes. It’s with 3 adjusters for adjusting tip and tilt angle.

Product characteristics
1. Three adjusters provides ±3° Kinematic Tip and Tilt Adjustment.
2. Optics Fixing Mode : By SM2 Retaining Rings Or Nylon-Tipped Setscrew.
3. Compatible with 60mm cage system.

Products Related Download

Size of Compatible Optics

Select..  

Thread

Select..  

 M4

Lens Fixing Mode

Select..  

Clear

Pro No.

Parameter

Size of Compatible Optics

Thread

Lens Fixing Mode

Delivery time

Compare

Price

Purchase

530036

Parameter list

50.8mm

Retaining-Ring-Fixed

Consult



$183.33



530097

Parameter list

Φ50.8mm

Nylon-Tipped-Setscrew

In stock



$141.67


