30 mm Cage Right-Angle Mirror Mount 6mm Tapped Holes M4/M6





Share

WeChat

Scan and add Wechat

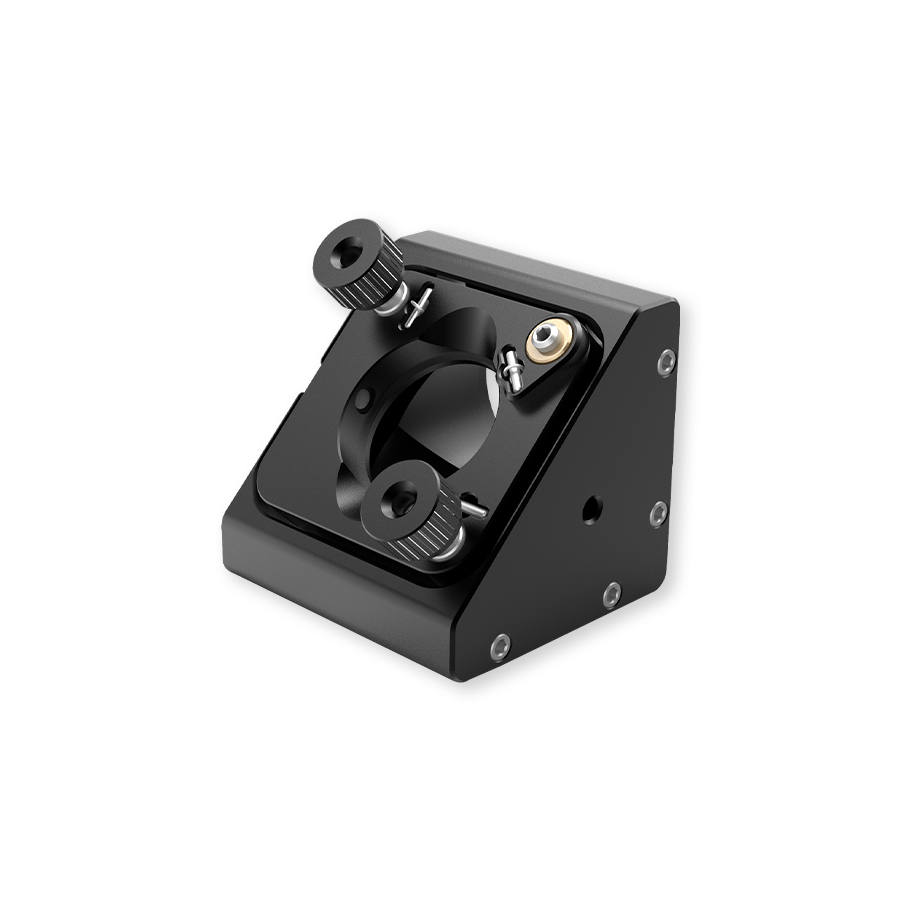

30 mm Cage Right-Angle Mirror Mount 6mm Tapped Holes M4/M6

Price Option

Product No. 530046

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

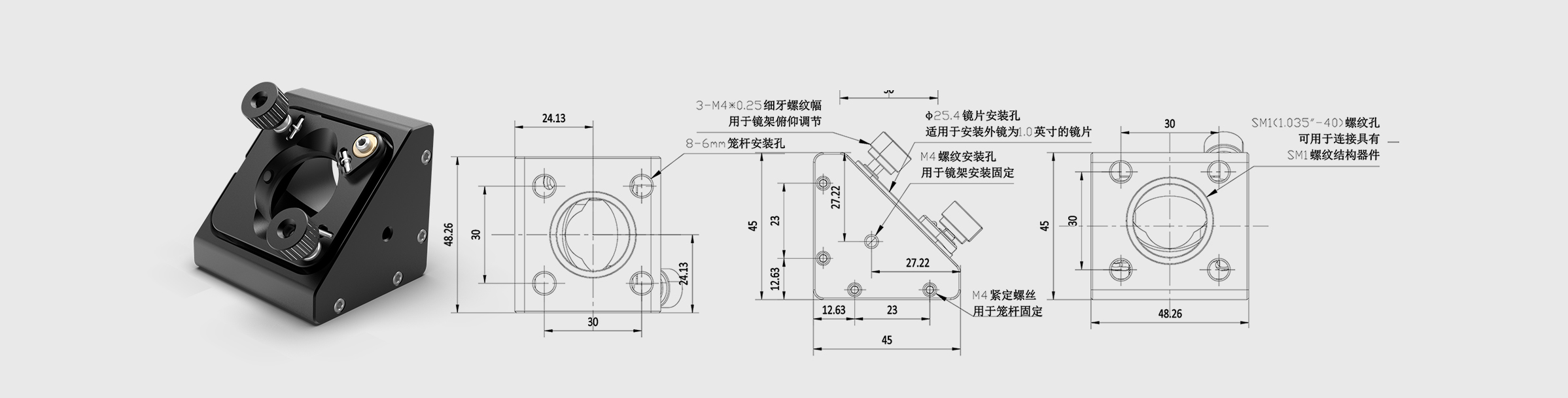

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Size of Compatible Optics 25.4mm

Cage Rod Features 6mm-Tapped-Holes

Thread M4/M6

60 mm Cage Mirror Mounts Size of Compatible Optics Φ50.8mmBy Retaining Ring

60mm Cage System XYZ Translation Mount Size of Compatible Optics 25.4mm

Z-Axis Translation Mount Size of Compatible Optics 25.4mm

30 mm Cage Dichroic Cubic Connector

GU Optics's Right-Angle Kinematic Mounts are designed for easy integration into our 30 mm cage system. All of these mounts have SM1-threaded bores on the entrance and exit ports for Ø1" (Φ25.4 mm) lens tube integration. The inclined surface is used to install Φ25.4 mm optical components with a minimum thickness of 3 mm, and fixed by locking screws. With three Adjusters to realized ±2.5 mm Linear Translation. Eight Tapped Holes forΦ6 mm Cage Rods.
