 TPX Lenses

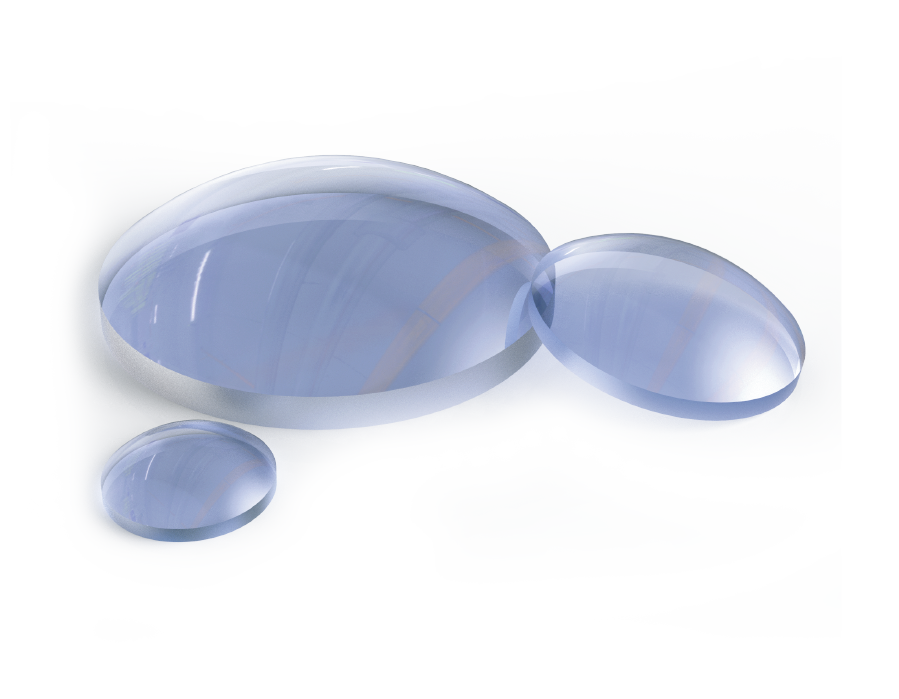

TPX Lenses

Grand Unified Optics offers TPX lenses with diameters of 25mm and 38mm, with focal lengths covering 35mm, 50mm, 100mm, and 200mm. This type of product is mainly used for focusing and collimation in optical systems. It is widely used in the Products or related fields such as Terahertz spectrometer, Terahertz imaging system, and terahertz research

Material TPX（Poly 4-methylpentene）

Aperture ＞90%

Design Wavelength 300μm

Diameter Tolerance ±0.25mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance ±1%

Surface Quality 80-50

Surface Irregularities 2

Bevel 0.3X0.3

Refractive Index 1.45@1 THZ

Coating none

Products Spectral curve Related Download

Dia

Select..  

Lens FL

Select..  

Coating

Select..  

 Uncoated

Clear

Pro No.

Parameter

Dia

Lens FL

Coating

Delivery time

Compare

Price

Purchase

140489

Parameter list

25.4mm

35mm

16.24mm

Uncoated

Consult



$346.20



140490

Parameter list

25.4mm

50mm

23.2mm

Uncoated

Consult



$346.20



140491

Parameter list

38mm

50mm

23.2mm

Uncoated

Consult



$376.93



140492

Parameter list

38mm

100mm

46.4mm

Uncoated

Consult



$376.93



140493

Parameter list

38mm

200mm

92.8mm

Uncoated

Consult



$376.93


