Aspheric Lenses

 Aspheric Lenses UV

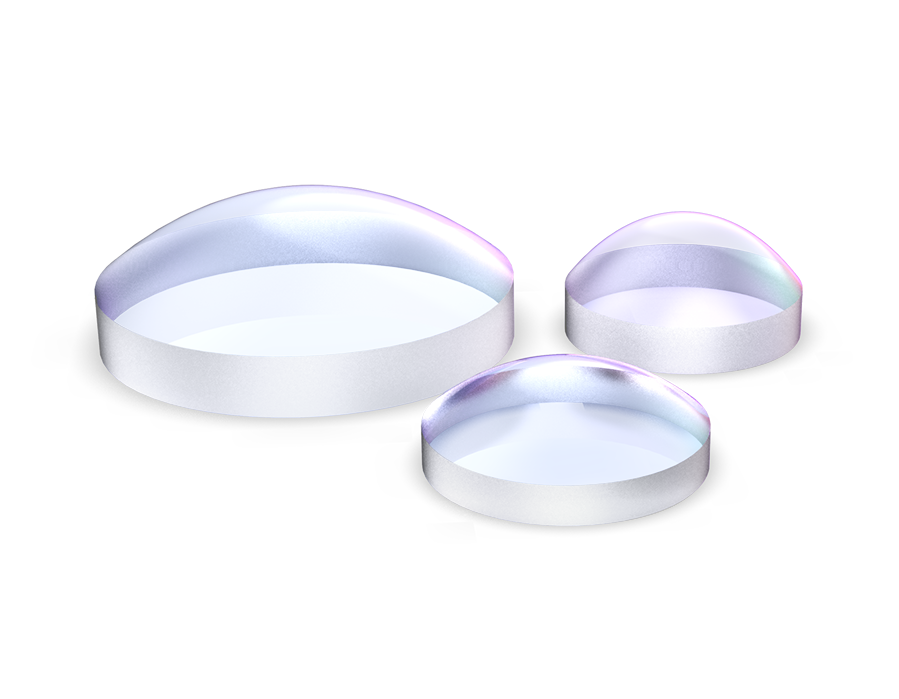

Aspheric Lenses UV

Aspheric Lenses are used to eliminate spherical aberration, uses include bar code scanners, laser diode collimation, or OEM R&D integration. Aspheric lenses utilize a single element design which helps to minimize the number of lenses in optical system . Grand Unified Optics offers uncoated and AR coating Aspheric Lenses to meet your application.

Material UV-Grade Fused Silica JGS1

Design Wavelength 405nm

Diameter Tolerance +0/-0.05mm

Center Thickness Tolerance ±0.1mm

NA 0.65

Surface Accuracy PV λ/4@632.8nm

Asphere Figure Error RMS0.75μm

Surface Quality 40/20

Centering Tolerance ＜3′

Focal Length Tolerance ±1%

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

 0.65

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

140655

Parameter list

12.50mm

10.00mm

Uncoated

0.65

Consult



$128.97



140656

Parameter list

25.00mm

20.00mm

Uncoated

0.65

Consult



$178.86



140657

Parameter list

50.00mm

40.00mm

Uncoated

0.65

Consult



$412.48



140658

Parameter list

12.50mm

10.00mm

AR@250-400nm

0.65

Consult



$170.35



140659

Parameter list

25.00mm

20.00mm

AR@250-400nm

0.65

Consult



$226.31



140660

Parameter list

50.00mm

40.00mm

AR@250-400nm

0.65

Consult



$457.50


