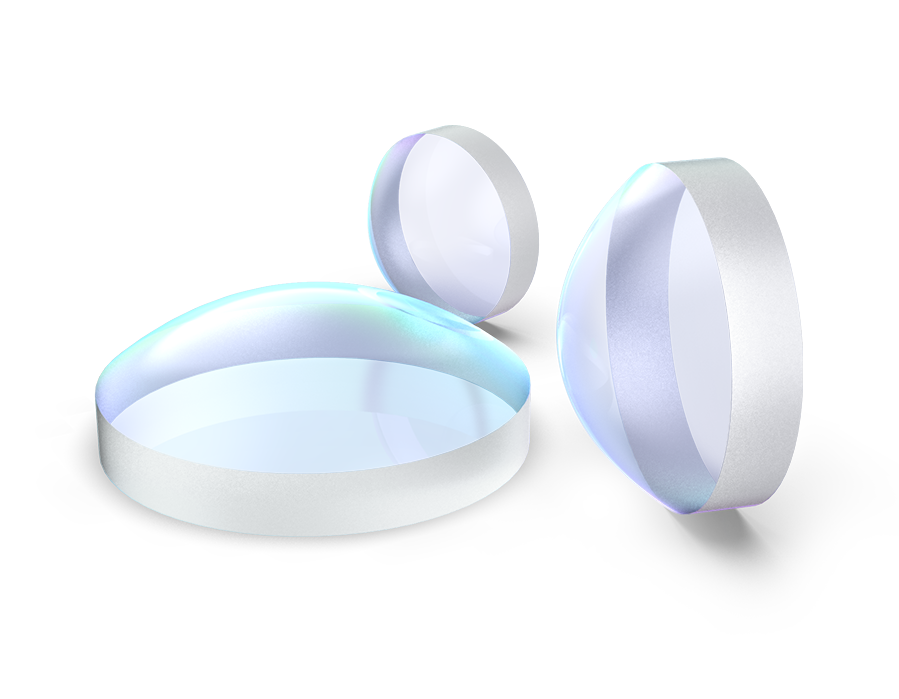

Standard Aspheric Lenses
Aspheric Lenses are used to eliminate spherical aberration, uses include bar code scanners, laser diode collimation, or OEM R&D integration. Aspheric lenses utilize a single element design which helps to minimize the number of lenses in optical system . Grand Unified Optics offers uncoated and AR coating Aspheric Lenses to meet your application.
Standard Aspheric Lenses
Design Wavelength 587.6nm
Diameter Tolerance +0/-0.1mm
Center Thickness Tolerance ±0.1mm
Clear Aperture 90%
Asphere Figure Error RMS 0.75um
Surface Quality 60/40
Centering Tolerance ＜5′

Dia

EFL

Coating

NA

Clear
Pro No.
Parameter
Dia
EFL
Coating
NA
Delivery time
Compare
Price
Purchase
140607
Parameter list
10.00mm
7.50mm
Uncoated
0.67
Consult
$187.96
140608
Parameter list
12.50mm
9.50mm
Uncoated
0.66
Consult
$212.96
140609
Parameter list
15.00mm
9.00mm
Uncoated
0.83
Consult
$356.48
140610
Parameter list
40.00mm
30.00mm
Uncoated
0.66
Consult
$453.70
140611
Parameter list
50.00mm
50.00mm
Uncoated
0.5
Consult
$549.07
140612
Parameter list
10.00mm
7.50mm
AR@400-700nm
0.67
Consult
$212.96
140613
Parameter list
12.50mm
9.50mm
AR@400-700nm
0.66
Consult
$236.11
140614
Parameter list
15.00mm
9.00mm
AR@400-700nm
0.83
Consult
$380.56
140615
Parameter list
40.00mm
30.00mm
AR@400-700nm
0.66
Consult
$499.07
140616
Parameter list
50.00mm
50.00mm
AR@400-700nm
0.5
Consult
$601.85
140617
Parameter list
10.00mm
7.50mm
AR@650-1050nm
0.67
Consult
$222.22
140618
Parameter list
12.50mm
9.50mm
AR@650-1050nm
0.66
Consult
$245.37
140619
Parameter list
15.00mm
9.00mm
AR@650-1050nm
0.83
Consult
$389.81
140620
Parameter list
40.00mm
30.00mm
AR@650-1050nm
0.66
Consult
$508.33
140621
Parameter list
50.00mm
50.00mm
AR@650-1050nm
0.5
Consult
$611.11
140622
Parameter list
10.00mm
7.50mm
AR@1000-1650nm
0.67
Consult
$225.93
140623
Parameter list
12.50mm
9.50mm
AR@1000-1650nm
0.66
Consult
$249.07
140624
Parameter list
15.00mm
9.00mm
AR@1000-1650nm
0.83
Consult
$393.52
140625
Parameter list
40.00mm
30.00mm
AR@1000-1650nm
0.66
Consult
$512.04
140626
Parameter list
50.00mm
50.00mm
AR@1000-1650nm
0.5
Consult
$614.81
