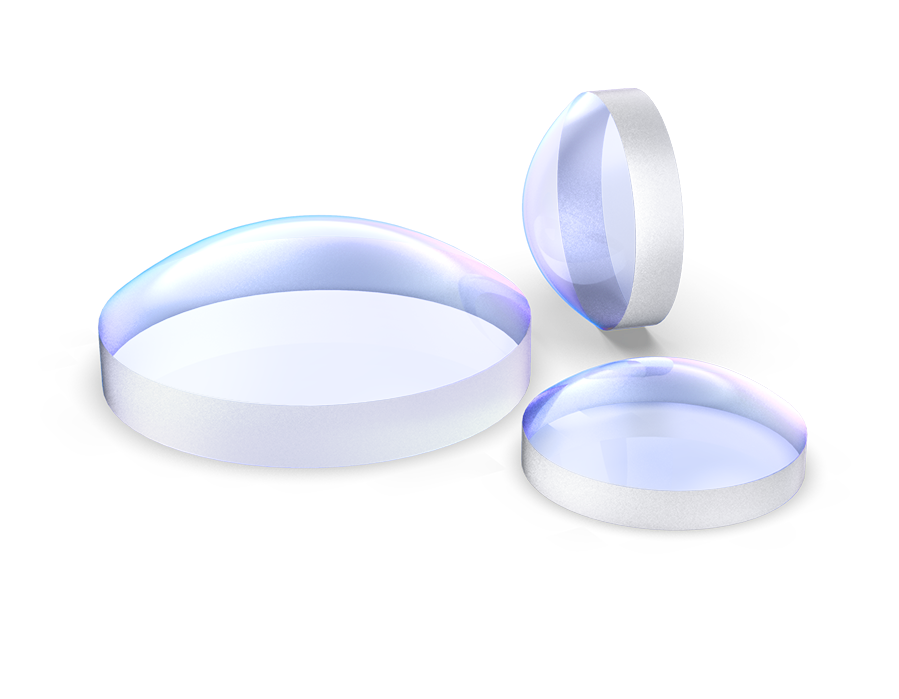

Precision Aspheric Lenses
Aspheric Lenses are used to eliminate spherical aberration, uses include bar code scanners, laser diode collimation, or OEM R&D integration. Aspheric lenses utilize a single element design which helps to minimize the number of lenses in optical system . Grand Unified Optics offers uncoated and AR coating Aspheric Lenses to meet your application.
Precision Aspheric Lenses
Design Wavelength 587.6nm
Diameter Tolerance +0.00/-0.025mm
Center Thickness Tolerance ±0.1mm
Clear Aperture 90%
Asphere Figure Error RMS 0.25um
Centering Tolerance 40/20
Surface Quality ＜1'

Dia

EFL

Coating

NA

Clear
Pro No.
Parameter
Dia
EFL
Coating
NA
Delivery time
Compare
Price
Purchase
140627
Parameter list
10.00mm
10.00mm
Uncoated
0.5
Consult
$212.96
140628
Parameter list
12.50mm
12.50mm
Uncoated
0.5
Consult
$237.04
140629
Parameter list
20.00mm
15.00mm
Uncoated
0.67
Consult
$294.44
140630
Parameter list
25.00mm
18.75mm
Uncoated
0.66
Consult
$268.52
140631
Parameter list
25.00mm
25.00mm
Uncoated
0.5
Consult
$312.04
140632
Parameter list
30.00mm
30.00mm
Uncoated
0.5
Consult
$370.37
140633
Parameter list
50.00mm
37.50mm
Uncoated
0.66
Consult
$615.74
140634
Parameter list
10.00mm
10.00mm
AR@400-700nm
0.5
Consult
$237.04
140635
Parameter list
12.50mm
12.50mm
AR@400-700nm
0.5
Consult
$258.33
140636
Parameter list
20.00mm
15.00mm
AR@400-700nm
0.67
Consult
$307.41
140637
Parameter list
25.00mm
18.75mm
AR@400-700nm
0.66
Consult
$347.22
140638
Parameter list
25.00mm
25.00mm
AR@400-700nm
0.5
Consult
$347.22
140639
Parameter list
30.00mm
30.00mm
AR@400-700nm
0.5
Consult
$405.56
140640
Parameter list
50.00mm
37.50mm
AR@400-700nm
0.66
Consult
$675.93
140641
Parameter list
10.00mm
10.00mm
AR@650-1050nm
0.5
Consult
$240.74
140642
Parameter list
12.50mm
12.50mm
AR@650-1050nm
0.5
Consult
$262.04
140643
Parameter list
20.00mm
15.00mm
AR@650-1050nm
0.67
Consult
$311.11
140644
Parameter list
25.00mm
18.75mm
AR@650-1050nm
0.66
Consult
$350.93
140645
Parameter list
25.00mm
25.00mm
AR@650-1050nm
0.5
Consult
$350.93
140646
Parameter list
30.00mm
30.00mm
AR@650-1050nm
0.5
Consult
$409.26
More products >>
Curve download

SWIR Achromatic Waveplate

SWIR Achromatic Waveplate

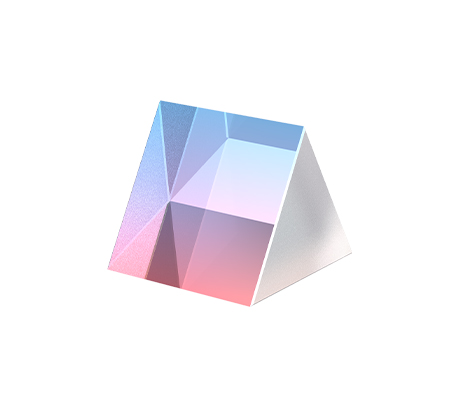

Equilateral Dispersion Prisms
