Precision Aspheric Lenses D=10.00mm F=10.00mm AR@650-1050nm | GU OPTICS

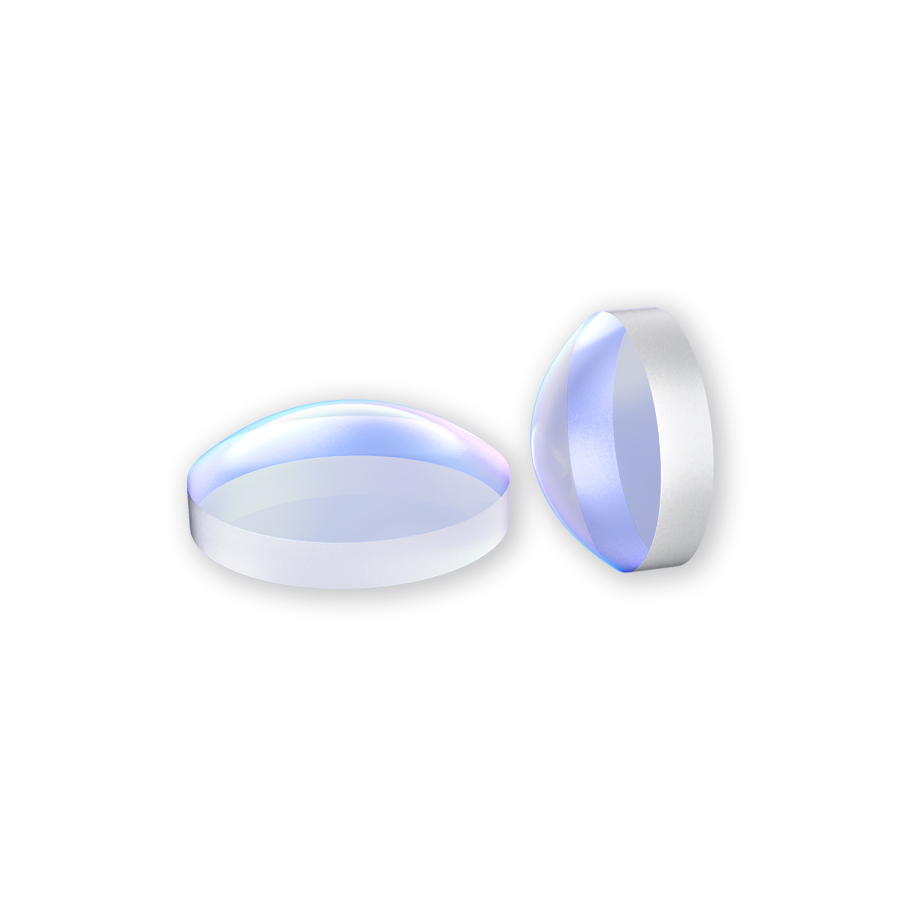

Precision Aspheric Lenses D=10.00mm F=10.00mm AR@650-1050nm

Precision Aspheric Lenses D=10.00mm F=10.00mm AR@650-1050nm

Price Option

Product No. 140641

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download

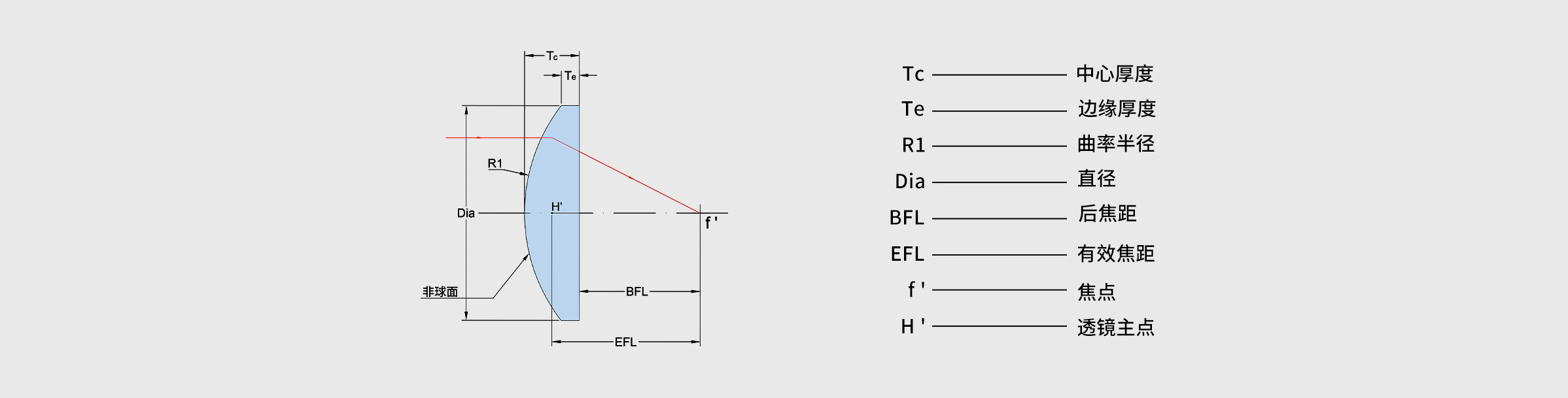

Dia 10.00mm
EFL 10.00mm
Coating AR@650-1050nm
Material H-ZF7LA
BFL 5.68mm
NA 0.5
CT 7.80mm
ET 6.18mm
Design Wavelength 587.6nm
Diameter Tolerance +0.00/-0.025mm
Center Thickness Tolerance ±0.1mm
Clear Aperture 90%
Asphere Figure Error RMS 0.25μm
Centering Tolerance <1′
Surface Quality 40/20
