Aspheric Lenses

 Zinc Selenide (ZnSe) Aspheric Lenses

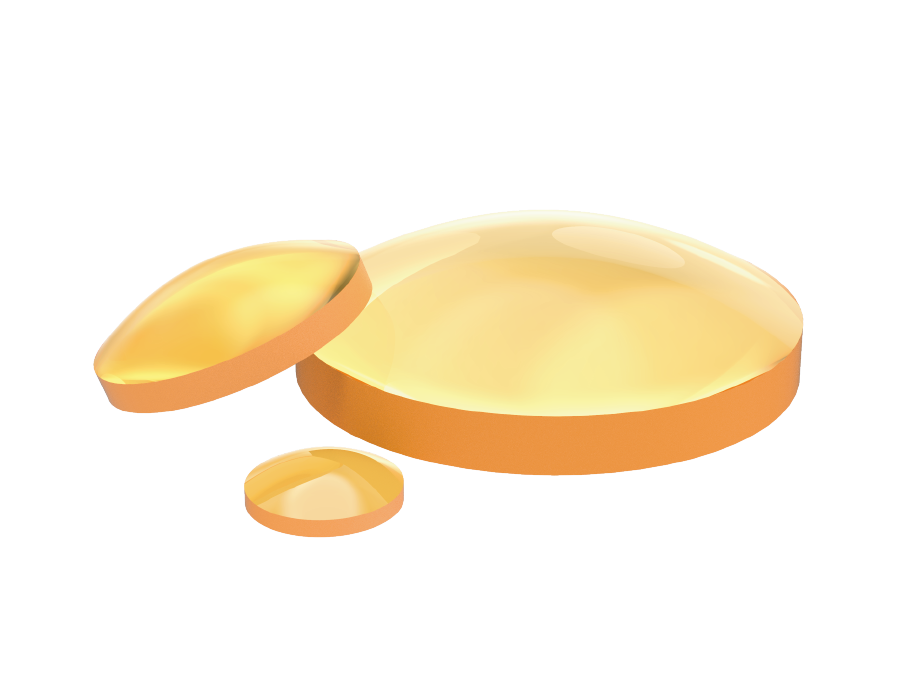

Zinc Selenide (ZnSe) Aspheric Lenses

Aspheric Lenses are used to eliminate spherical aberration, uses include bar code scanners, laser diode collimation, or OEM R&D integration. Aspheric lenses utilize a single element design which helps to minimize the number of lenses in optical system . Image Optics offers uncoated and AR coating Aspheric Lenses to meet your application.

Material ZnSe CVD Laser Grade（ZnSe）

Applied wavelength As product list

Diameter Tolerance +0.0/-0.1mm

Center Thickness Tolerance ±0.2mm

Focal Length Tolerance（EFL） ±1%

Centering Tolerance ＜3 arcmin

Surface Quality 40-20

Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

 25.40mm

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

140000

Parameter list

25.40mm

12.70mm

Uncoated

7.00mm

In stock



$787.04



140001

Parameter list

25.40mm

25.00mm

Uncoated

6.00mm

Consult



$722.22



140002

Parameter list

25.40mm

50.00mm

Uncoated

5.00mm

In stock



$685.19



140003

Parameter list

25.40mm

12.70mm

Uncoated

6.20mm

In stock



$787.04



140004

Parameter list

25.40mm

25.00mm

Uncoated

6.00mm

In stock



$722.22



140005

Parameter list

25.40mm

50.00mm

Uncoated

5.00mm

In stock



$685.19



140006

Parameter list

25.40mm

12.70mm

Double-Sided-AR-coating-@3~5μm

7.00mm

In stock



$833.33



140007

Parameter list

25.40mm

25.00mm

Double-Sided-AR-coating-@3~5μm

6.00mm

In stock



$768.52



140008

Parameter list

25.40mm

50.00mm

Double-Sided-AR-coating-@3~5μm

5.00mm

In stock



$731.48



140009

Parameter list

25.40mm

12.70mm

Double-Sided-AR-coating-@8~12μm

6.20mm

In stock



$833.33



140010

Parameter list

25.40mm

25.00mm

Double-Sided-AR-coating-@8~12μm

6.00mm

In stock



$768.52



140011

Parameter list

25.40mm

50.00mm

Double-Sided-AR-coating-@8~12μm

5.00mm

In stock



$731.48



Curve download

Moulded Aspheric Lenses

Infrared Laser Collimating Aspheric Lenses

Optical Fiber Collimator

Mounted Aspheric Lenses
