Infrared Laser Collimating Aspheric Lenses

Mid-far Infrared Laser Collimating Aspheric Lenses has large NA, which can collect the maximum light energy in mid-far infrared laser collimation systems (including Quantum Laser). Aspherical lenses are used to replace multi-lenses by a single lens in optical system.

Focal Length Tolerance ±1%

Center Thickness Tolerance ±0.025mm

Out Diameter Tolerance ±0.015mm

Surface Roughness 15nm

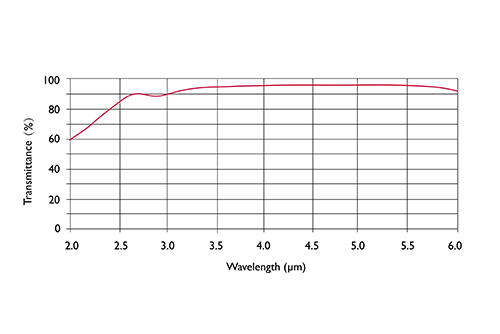

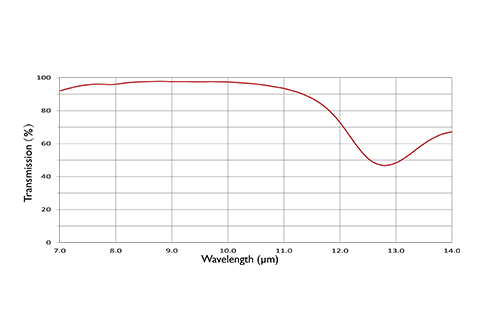

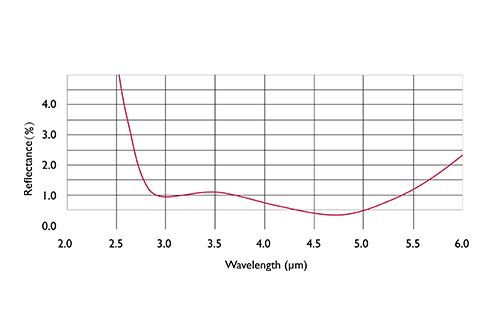

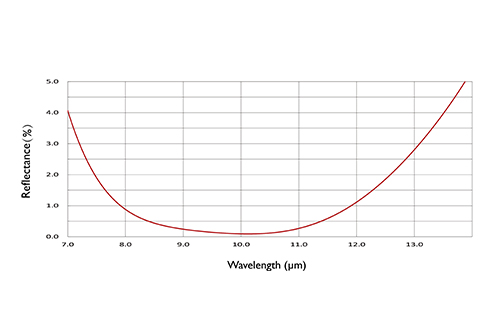

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Coating

Delivery time

Compare

Price

Purchase

140245

Parameter list

6.5mm

4.0mm

0.56

Ravg<0.60%@2-6μm

Consult



Consult



140246

Parameter list

12.5mm

19.04mm

0.23

Ravg<0.60%@2-6μm

Consult



Consult



140247

Parameter list

3.5mm

1.50mm

0.72

Ravg<0.60%@2-6μm

Consult



Consult



140248

Parameter list

8.0mm

5.95mm

0.56

Ravg<0.60%@2-6μm

Consult



Consult



140249

Parameter list

3.0mm

0.91mm

0.86

Ravg<0.60%@2-6μm

Consult



Consult



140250

Parameter list

6.5mm

3.0mm

0.71

Ravg <1.00%@7-14μm

Consult



Consult



140251

Parameter list

4.5mm

1.47mm

0.83

Ravg <1.00%@7-14μm

Consult



Consult



140252

Parameter list

5.5mm

1.87mm

0.85

Ravg<0.60%@2-6μm

Consult



Consult



140253

Parameter list

6.5mm

11mm

0.18

Ravg <1.00%@7-14μm

Consult



Consult



140807

Parameter list

3.5mm

1.50mm

0.72

Ravg <1.00%@7-14μm

Consult



Consult



140808

Parameter list

8.0mm

5.95mm

0.56

Ravg <1.00%@7-14μm

Consult



Consult



140809

Parameter list

3.0mm

0.91mm

0.86

Ravg <1.00%@7-14μm

Consult



Consult



140810

Parameter list

6.5mm

4.0mm

0.56

Ravg <1.00%@7-14μm

Consult



Consult



140811

Parameter list

5.5mm

1.87mm

0.85

Ravg <1.00%@7-14μm

Consult



Consult



140812

Parameter list

12.5mm

19.04mm

0.23

Ravg <1.00%@7-14μm

Consult



Consult



140813

Parameter list

4.5mm

1.47mm

0.83

Ravg <1.00%@1.75-3μm

Consult



Consult



140814

Parameter list

3.5mm

1.50mm

0.72

Ravg <1.00%@1.75-3μm

Consult



Consult



140815

Parameter list

8.0mm

5.95mm

0.56

Ravg <1.00%@1.75-3μm

Consult



Consult



140816

Parameter list

3.0mm

0.91mm

0.86

Ravg <1.00%@1.75-3μm

Consult



Consult



140817

Parameter list

6.5mm

4.0mm

0.56

Ravg <1.00%@1.75-3μm

Consult



Consult


