Home  Products  Aspheric Lenses UV  140660

Aspheric Lenses UV D=50.00mm F=40.00mm AR@250-400nm





Share

WeChat

Scan and add Wechat

Aspheric Lenses UV D=50.00mm F=40.00mm AR@250-400nm

Price Option

Product No. 140660

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Spectrum Curve Related Products Description

Dia 50.00mm

EFL 40.00mm

Coating AR@250-400nm

Material UV-Grade Fused Silica JGS6

BFL 19.70mm

Collimation(Aspheric Side) φ45.72mm

Focusing(Plano Side) φ35.1mm

NA 0.65

CT 29.85mm

ET 7.30mm

Design Wavelength 405nm

Diameter Tolerance +0/-0.05mm

Center Thickness Tolerance ±0.1mm

Surface Accuracy λ/4@632.8nm

Focal Length Tolerance ±1%

Asphere Figure Error RMS0.75μm

Centering Tolerance ＜3′

Surface Quality 40/20

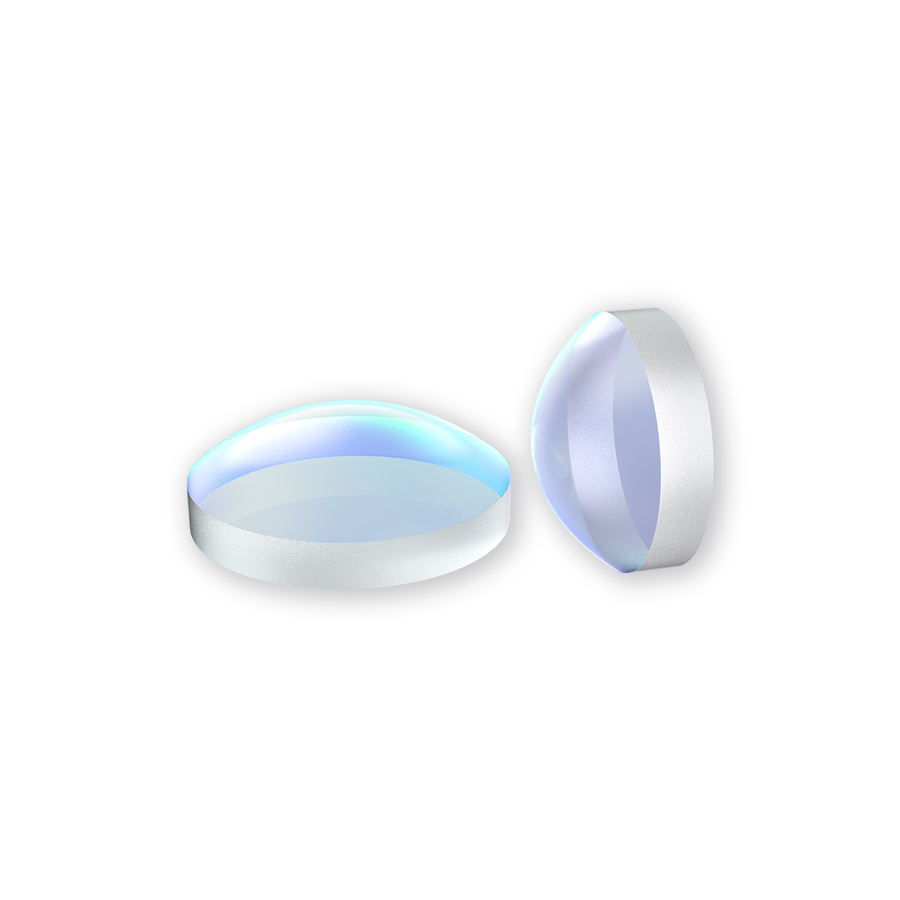

Standard Aspheric Lenses D=12.50mm F=9.50mm AR@400-700nm
