Home  Products 

UV and IR Windows

 Silicon (Si) Windows

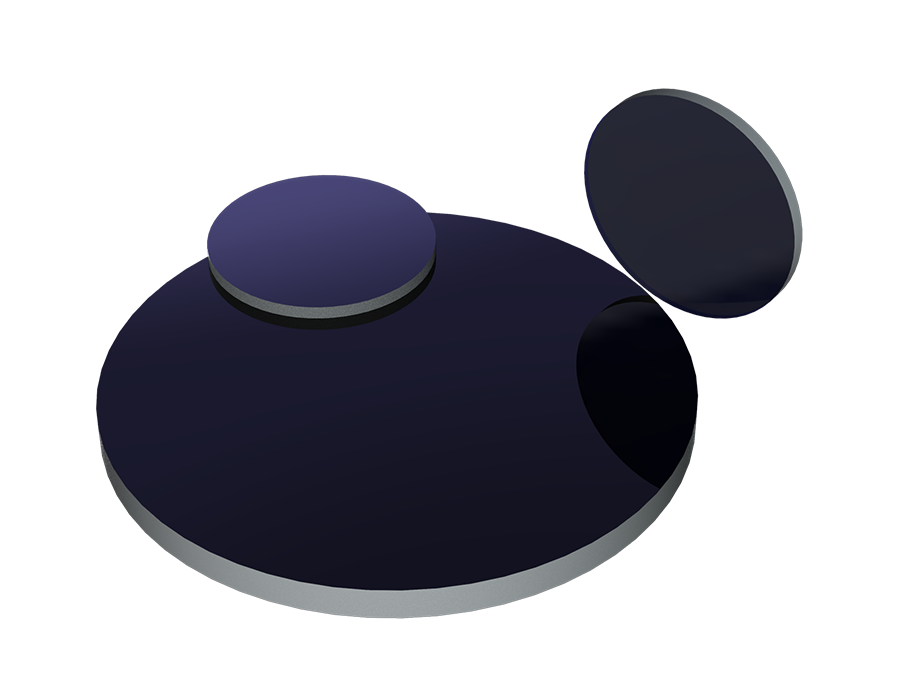

Silicon (Si) Windows

We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.

Material Silicon (Si) Single Crystal

Surface Accuracy 1λ @ 633 nm

Parallelism ＜1 arcmin

Surface Quality 40-20

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Surface Accuracy

Select..  

 1λ@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

190162

Parameter list

Φ10.0mm

Uncoated

1λ@633nm

1.0mm

In stock



$52.50



190163

Parameter list

Φ12.5mm

Uncoated

1λ@633nm

2.0mm

In stock



$59.17



190164

Parameter list

Φ12.7mm

Uncoated

1λ@633nm

2.0mm

In stock



$59.17



190165

Parameter list

Φ25.0mm

Uncoated

1λ@633nm

2.0mm

In stock



$75.00



190166

Parameter list

Φ25.4mm

Uncoated

1λ@633nm

2.0mm

In stock



$75.00



190167

Parameter list

Φ40.0mm

Uncoated

1λ@633nm

2.0mm

In stock



$112.50



190168

Parameter list

Φ50.0mm

Uncoated

1λ@633nm

3.0mm

In stock



$141.67



190169

Parameter list

Φ10.0mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

1.0mm

In stock



$69.17



190170

Parameter list

Φ12.5mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

2.0mm

In stock



$75.00



190171

Parameter list

Φ12.7mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

2.0mm

In stock



$75.00



190172

Parameter list

Φ25.0mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

2.0mm

In stock



$116.67



190173

Parameter list

Φ25.4mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

2.0mm

In stock



$116.67



190174

Parameter list

Φ40.0mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

2.0mm

In stock



$158.33



190175

Parameter list

Φ50.0mm

Double-Sided-AR-coating-Ravg<1%@3~5μm

1λ@633nm

3.0mm

In stock



$191.67



Curve download

Barium Fluoride (BaF2) Windows

Calcium Fluoride (CaF2) Windows

Zinc Sulfide (ZnS) Windows

Zinc Selenide (ZnSe) Windows

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
