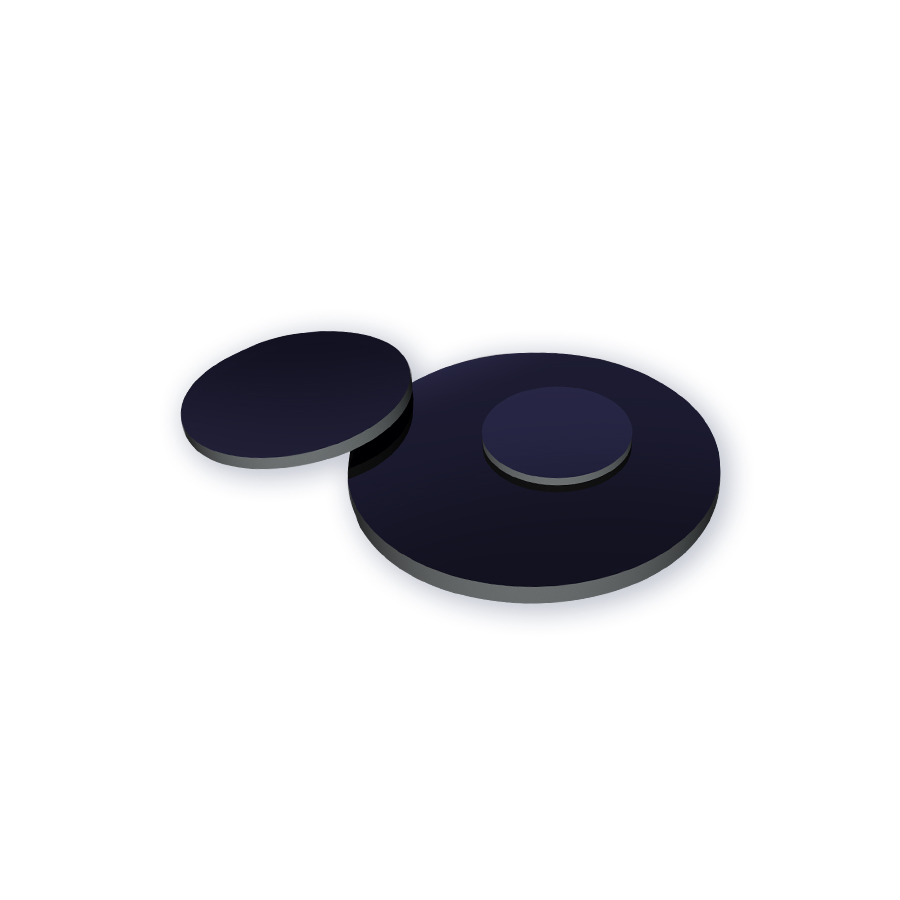

IR Optical Windows Φ40.0mm Thickness=2.0mm IR1 Si Single Crystal





Share

WeChat

Scan and add Wechat

IR Optical Windows Φ40.0mm Thickness=2.0mm IR1 Si Single Crystal

Price Option

Product No. 190174

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia Φ40.0mm

Coating Double-Sided-AR-coating-Ravg<1%@3~5μm

Material Si Single Crystal

Surface Accuracy 1λ@633nm

Thickness 2.0mm

Parallelism ＜1arcmin

Surface Quality 40/20-60/40

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2~0.5mmX45°

IR Optical Windows Φ50.0mm Thickness=3.0mm IR1 Si Single Crystal

IR Optical Windows Φ50.0mm Thickness=3.0mm IR1 Si Single Crystal

IR Optical Windows Φ10.0mm Thickness=1.0mm Uncoated Ge Single Crystal

IR Optical Windows Φ10.0mm Thickness=1.0mm Uncoated Ge Single Crystal

IR Optical Windows Φ12.5mm Thickness=2.0mm Uncoated Ge Single Crystal

IR Optical Windows Φ12.5mm Thickness=2.0mm Uncoated Ge Single Crystal

IR Optical Windows Φ12.7mm Thickness=2.0mm Uncoated Ge Single Crystal

IR Optical Windows Φ12.7mm Thickness=2.0mm Uncoated Ge Single Crystal

Optical Windows are flat plane-parallel plates, which are often used to protect electronic sensors or detectors without blocking optical transmission. Optical Windows do not change the magnification of a system. Grand Unified Optics offers a variety of optical windows, which cover the wavelength range from ultraviolet (UV) to infrared (IR).We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.
