 High Precision UV Fused Silica Windows

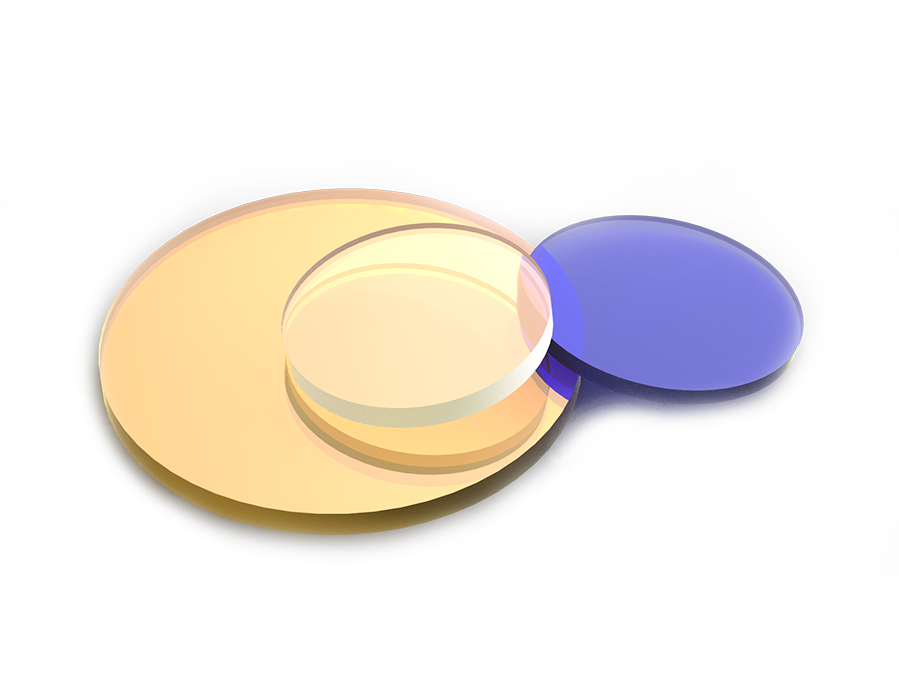

High Precision UV Fused Silica Windows

We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.

Material UV Fused Silica

Surface Accuracy λ/10 @ 633 nm

Parallelism ＜5arcsec

Surface Quality 10-5

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Surface Accuracy

Select..  

 λ/10@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

190055

Parameter list

Φ5.0mm

Uncoated

λ/10@633nm

2.0mm

In stock



$24.17



190056

Parameter list

Φ10.0mm

Uncoated

λ/10@633nm

2.0mm

In stock



$24.17



190057

Parameter list

Φ12.5mm

Uncoated

λ/10@633nm

3.0mm

In stock



$34.17



190058

Parameter list

Φ12.7mm

Uncoated

λ/10@633nm

3.0mm

In stock



$34.17



190059

Parameter list

Φ20.0mm

Uncoated

λ/10@633nm

3.0mm

In stock



$48.33



190060

Parameter list

Φ25.0mm

Uncoated

λ/10@633nm

6.0mm

In stock



$55.83



190061

Parameter list

Φ25.4mm

Uncoated

λ/10@633nm

6.0mm

In stock



$55.83



190062

Parameter list

Φ30.0mm

Uncoated

λ/10@633nm

10.0mm

In stock



$75.00



190063

Parameter list

Φ38.1mm

Uncoated

λ/10@633nm

10.0mm

In stock



$101.67



190064

Parameter list

Φ50.0mm

Uncoated

λ/10@633nm

10.0mm

In stock



$125.00



190065

Parameter list

Φ50.8mm

Uncoated

λ/10@633nm

10.0mm

In stock



$125.00



190066

Parameter list

Φ5.0mm

AR@250~425nm

λ/10@633nm

2.0mm

In stock



$30.83



190067

Parameter list

Φ10.0mm

AR@250~425nm

λ/10@633nm

2.0mm

In stock



$30.83



190068

Parameter list

Φ12.5mm

AR@250~425nm

λ/10@633nm

3.0mm

In stock



$40.83



190069

Parameter list

Φ12.7mm

AR@250~425nm

λ/10@633nm

3.0mm

In stock



$40.83



190070

Parameter list

Φ20.0mm

AR@250~425nm

λ/10@633nm

3.0mm

In stock



$54.67



190071

Parameter list

Φ25.0mm

AR@250~425nm

λ/10@633nm

6.0mm

In stock



$65.83



190072

Parameter list

Φ25.4mm

AR@250~425nm

λ/10@633nm

6.0mm

In stock



$65.83



190073

Parameter list

Φ30.0mm

AR@250~425nm

λ/10@633nm

10.0mm

In stock



$85.00



190074

Parameter list

Φ38.1mm

AR@250~425nm

λ/10@633nm

10.0mm

In stock



$113.33



More products >>

Curve download

Standard Precision Sapphire Windows

High Precision Sapphire Windows

Barium Fluoride (BaF2) Windows

Calcium Fluoride (CaF2) Windows

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
