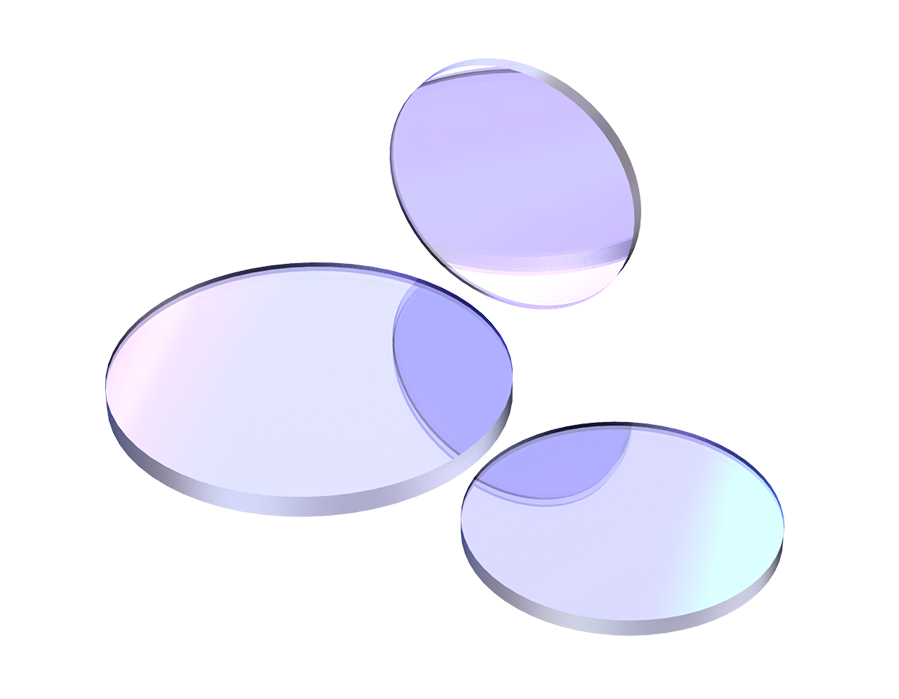

 High Precision Sapphire Windows

High Precision Sapphire Windows

We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.

Material Optical grade sapphire

Surface Accuracy λ/4 @ 633 nm

Parallelism ＜30 arcsec

Surface Quality 40-20

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2mmX45°

Coating Uncoated

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

 -

Surface Accuracy

Select..  

 λ/4@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

190118

Parameter list

Φ3.0mm

λ/4@633nm

1.0mm

In stock



$30.83



190119

Parameter list

Φ5.0mm

λ/4@633nm

1.0mm

In stock



$34.17



190120

Parameter list

Φ6.3mm

λ/4@633nm

1.0mm

In stock



$35.83



190121

Parameter list

Φ8.0mm

λ/4@633nm

1.0mm

In stock



$35.83



190122

Parameter list

Φ10.0mm

λ/4@633nm

1.0mm

In stock



$37.50



190123

Parameter list

Φ12.5mm

λ/4@633nm

2.0mm

In stock



$45.00



190124

Parameter list

Φ20.0mm

λ/4@633nm

2.0mm

In stock



$58.33



190125

Parameter list

Φ25.0mm

λ/4@633nm

2.0mm

In stock



$67.50


