 Standard Precision Sapphire Windows

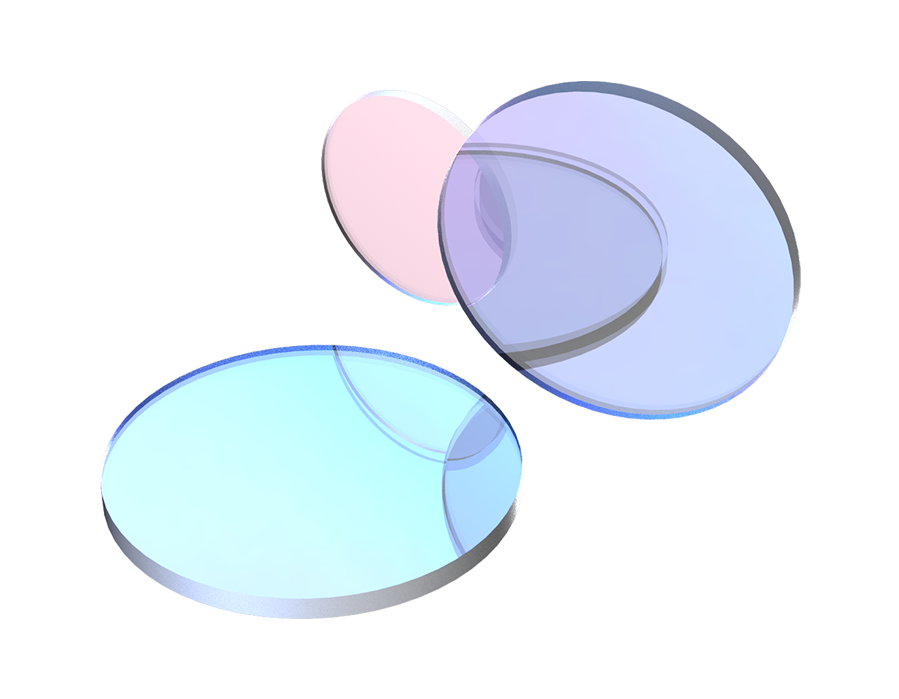

Standard Precision Sapphire Windows

We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.

Material Optical grade sapphire

Surface Accuracy 1~2λ @ 633 nm

Parallelism ＜3 arcsec

Surface Quality 80-50

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2mmX45°

Coating Uncoated

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

 -

Surface Accuracy

Select..  

 1~2λ@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

190110

Parameter list

Φ3.0mm

1~2λ@633nm

0.5mm

In stock



$13.33



190111

Parameter list

Φ5.0mm

1~2λ@633nm

0.5mm

In stock



$15.83



190112

Parameter list

Φ6.3mm

1~2λ@633nm

0.5mm

In stock



$17.50



190113

Parameter list

Φ8.0mm

1~2λ@633nm

1.0mm

In stock



$19.17



190114

Parameter list

Φ10.0mm

1~2λ@633nm

1.0mm

In stock



$22.50



190115

Parameter list

Φ12.5mm

1~2λ@633nm

1.0mm

In stock



$25.83



190116

Parameter list

Φ20.0mm

1~2λ@633nm

1.0mm

In stock



$31.67



190117

Parameter list

Φ25.0mm

1~2λ@633nm

1.0mm

In stock



$37.50



Curve download
