Home  Products  Standard Precision Sapphire Windows  190115

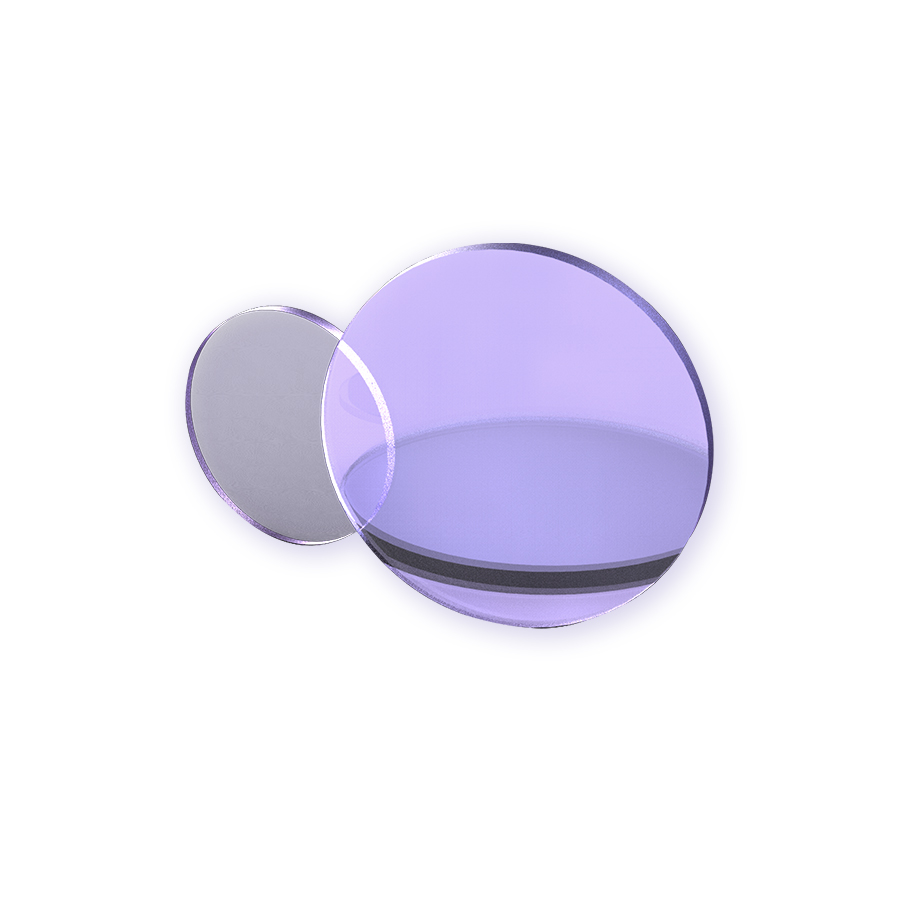

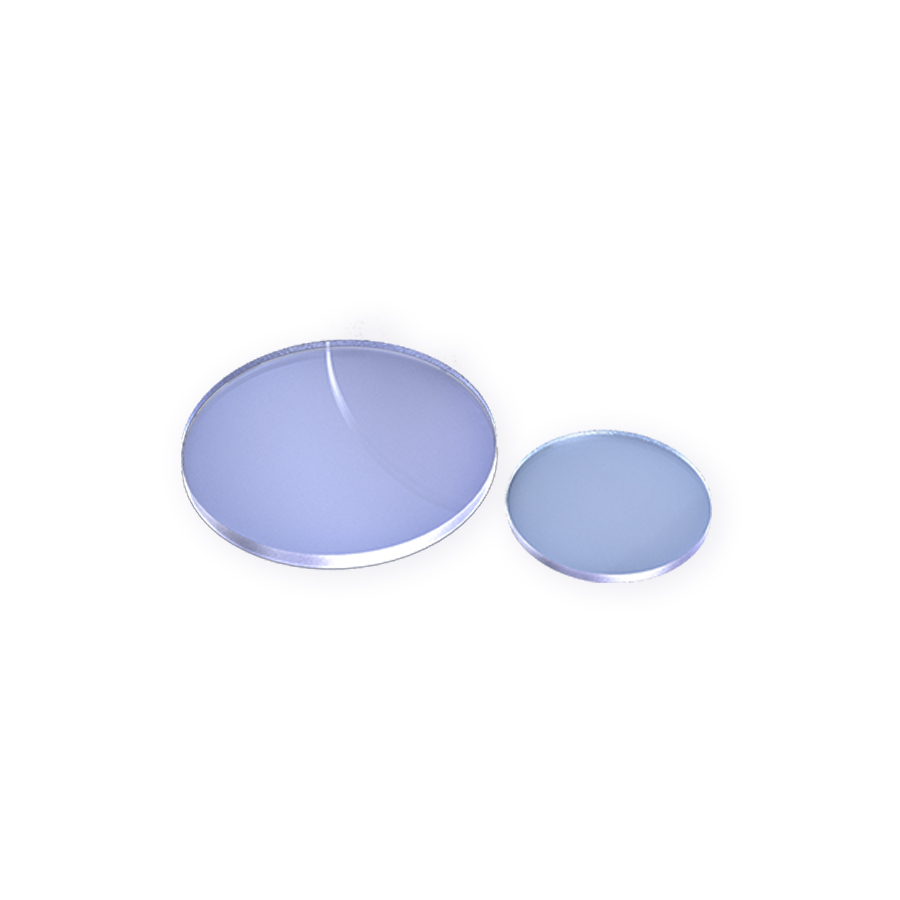

UV Optical Windows Φ12.5mm Thickness=1.0mm Uncoated Optical grade sapphire





Share

WeChat

Scan and add Wechat

UV Optical Windows Φ12.5mm Thickness=1.0mm Uncoated Optical grade sapphire

Price Option

Product No. 190115

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia Φ12.5mm

Coating -

Material Optical grade sapphire

Surface Accuracy 1~2λ@633nm

Thickness 1.0mm

Parallelism ＜3arcmin

Surface Quality 80-50

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2~0.5mmX45°

UV Optical Windows Φ20.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ20.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ25.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ25.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ3.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ3.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ5.0mm Thickness=1.0mm Uncoated Optical grade sapphire

UV Optical Windows Φ5.0mm Thickness=1.0mm Uncoated Optical grade sapphire

Optical Windows are flat plane-parallel plates, which are often used to protect electronic sensors or detectors without blocking optical transmission. Optical Windows do not change the magnification of a system. Grand Unified Optics offers a variety of optical windows, which cover the wavelength range from ultraviolet (UV) to infrared (IR).We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.
