Home  Products 

UV and IR Windows

 Germanium (Ge) Windows

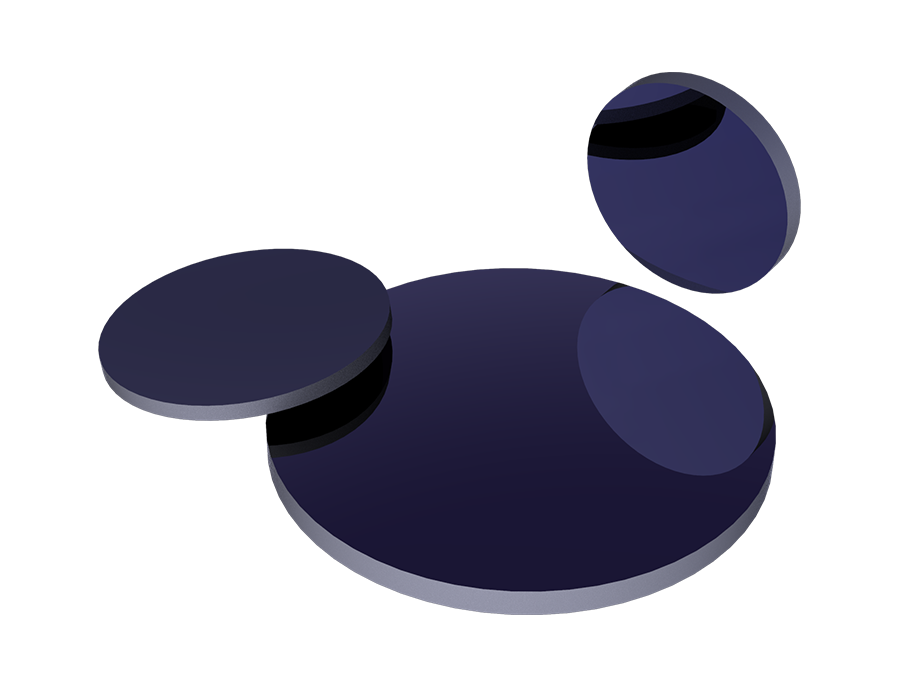

Germanium (Ge) Windows

We provide uncoated and AR coating flat windows with different substrates to suit a range of applications (BaF2) ,(CaF2) 、(ZnS) 、(ZnSe),（Si）or（Ge）are suitable for infrared applications, Fused Silica or Sapphire are ideal for ultraviolet applications.

Material Germanium (Ge) Single Crystal

Surface Accuracy 1λ @ 633 nm

Parallelism ＜1 arcmin

Surface Quality 40-20

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.1mm

Bevel Protective Bevel 0.2mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Surface Accuracy

Select..  

 1λ@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

190176

Parameter list

Φ10.0mm

Uncoated

1λ@633nm

1.0mm

In stock



$75.00



190177

Parameter list

Φ12.5mm

Uncoated

1λ@633nm

2.0mm

In stock



$91.67



190178

Parameter list

Φ12.7mm

Uncoated

1λ@633nm

2.0mm

In stock



$91.67



190179

Parameter list

Φ25.0mm

Uncoated

1λ@633nm

2.0mm

In stock



$108.33



190180

Parameter list

Φ25.4mm

Uncoated

1λ@633nm

2.0mm

In stock



$108.33



190181

Parameter list

Φ40.0mm

Uncoated

1λ@633nm

2.0mm

In stock



$208.33



190182

Parameter list

Φ50.0mm

Uncoated

1λ@633nm

3.0mm

In stock



$258.33



190183

Parameter list

Φ10.0mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

1.0mm

In stock



$91.67



190184

Parameter list

Φ12.5mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

2.0mm

In stock



$108.33



190185

Parameter list

Φ12.7mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

2.0mm

In stock



$108.33



190186

Parameter list

Φ25.0mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

2.0mm

In stock



$141.67



190187

Parameter list

Φ25.4mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

2.0mm

In stock



$141.67



190188

Parameter list

Φ40.0mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

2.0mm

In stock



$258.33



190189

Parameter list

Φ50.0mm

Double-Sided-AR-coating-Ravg<1%@8~12μm

1λ@633nm

3.0mm

In stock



$308.33



Curve download

Barium Fluoride (BaF2) Windows

Calcium Fluoride (CaF2) Windows

Zinc Sulfide (ZnS) Windows

Zinc Selenide (ZnSe) Windows
