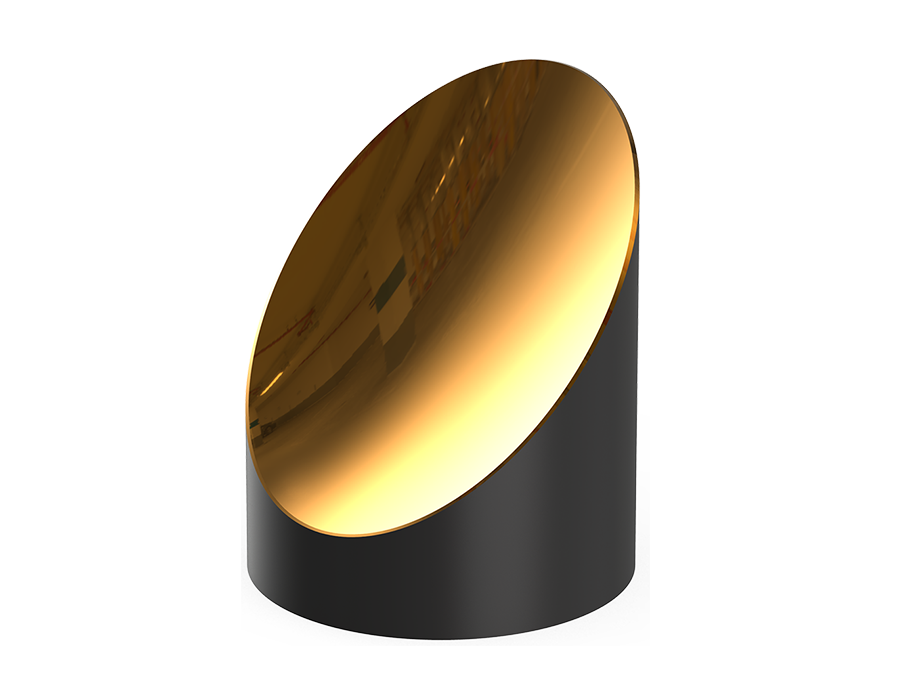

Off Axis Parabolic Mirror Au
平行于抛物面中轴的光线经抛物面反射会聚于焦点。离轴抛物面反射镜,反射面是抛物面的一部分,焦点位于光轴之外。联合光科推出直径25.4mm、50.8mm镀有金膜、银膜、铝膜离轴角为90°的离轴抛物面反射镜标准品,根据不同镀膜使其在可见光波段、近红外波段、红外波段有良好的光学性能,这些离轴抛物面反射镜的表面粗糙度分别为50Å和100Å使其在应用中能有效的降低光线的散射,其被广泛应用到反射光学系统、激光聚焦系统、太赫兹等产品或是相关领域,我们也可为您定制符合您需求的产品。
Off Axis Parabolic Mirror Au
Material 6061-T6
Surface Accuracy λ/4
Off-Set Angle 90°
Surface Quality 80-50
RMS RMS<100 Å
Diameter Tolerance 0/-0.2mm
Focal Length Tolerance ±1%
Coating As product list
Pro No.
Parameter
Dia
EFL
Off-axis
Coating
Coating
Delivery time
Compare
Price
Purchase
25.4mm
25.4mm
25.4mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$319.46
25.4mm
50.8mm
50.8mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$319.46
25.4mm
76.2mm
76.2mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$319.46
25.4mm
101.6mm
101.6mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$319.46
50.8mm
50.8mm
50.8mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$602.00
50.8mm
101.6mm
101.6mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$602.00
50.8mm
152.4mm
152.4mm
Ravg >96% @700 -2000nm,Ravg >96% @ 2000-10000nm
Metal
Consult
$602.00
