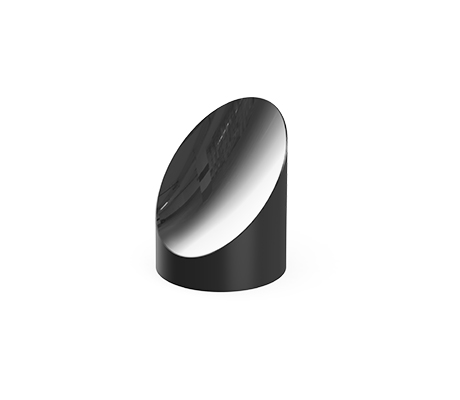

Off Axis Parabolic Mirror AL

Grand Unified Optics provides the standard off-axis angle of 90°parabolic mirrors with a diameter of 25.4mm, 50.8mm.And Coated mirrors including protected aluminum, Protected Silver, Protected Gold.According to different coatings, it is good optical performance in the visible, near-infrared and infrared bands. The surface roughness of these off-axis parabolic mirrors is 50Å and 100Å respectively, which can effectively reduce the scattering of light in applications. They are widely used in reflective optical systems and laser focusing. For systems, terahertz and other products or related fields,We can also offer custom coatings according to your requirements.

Material 6061-T6

Surface Accuracy λ/4

Off-Set Angle 90°

Surface Quality 80-50

RMS RMS＜100 Å

Diameter Tolerance 0/-0.2mm

Focal Length Tolerance ±1%

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Off-axis

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Off-axis

Coating

Delivery time

Compare

Price

Purchase

312500

Parameter list

25.4mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$207.49



312501

Parameter list

25.4mm

50.8mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$207.49



312502

Parameter list

25.4mm

76.2mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$207.49



312503

Parameter list

25.4mm

101.6mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$207.49



312504

Parameter list

50.8mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$447.15



312505

Parameter list

50.8mm

101.6mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$447.15



312506

Parameter list

50.8mm

152.4mm

Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Metal

Consult



$447.15


