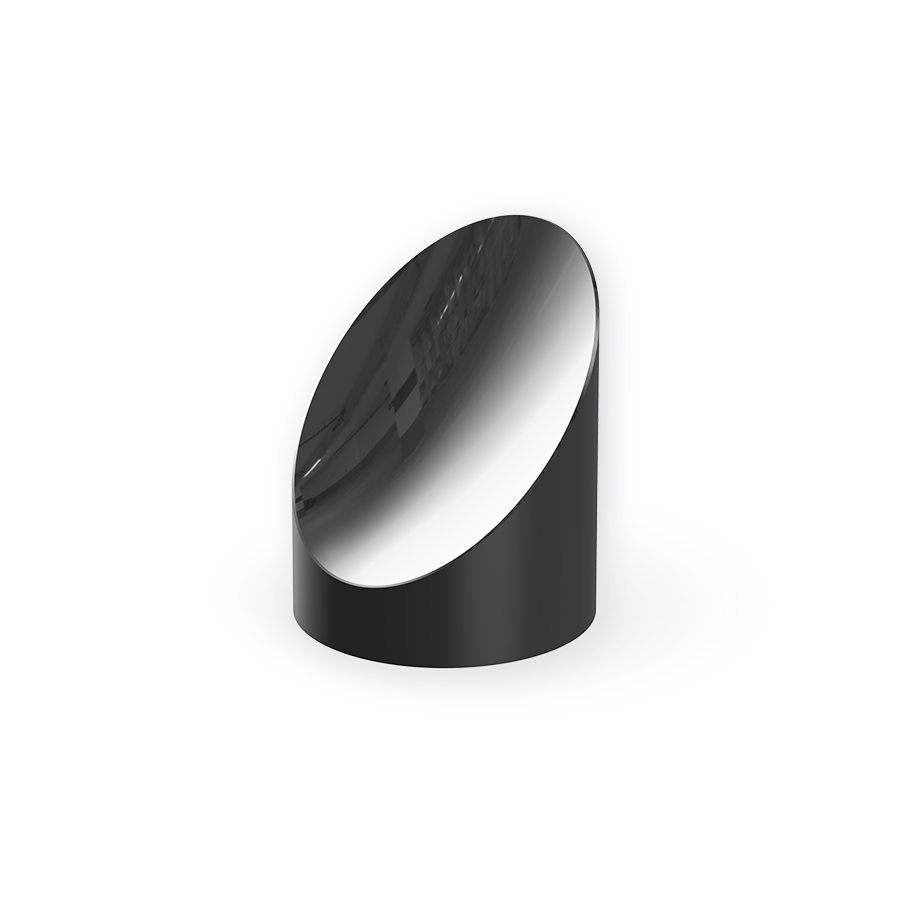

Off-Axis Mirrors Φ25.4 mm Protected Aluminum 6061-T6





  Likes

Share

WeChat

Scan and add Wechat

Off-Axis Mirrors Φ25.4 mm Protected Aluminum 6061-T6

Price Option

Product No. 312500

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

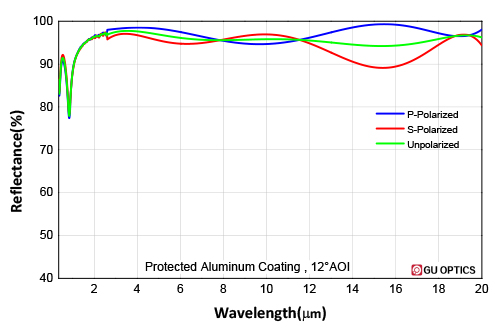

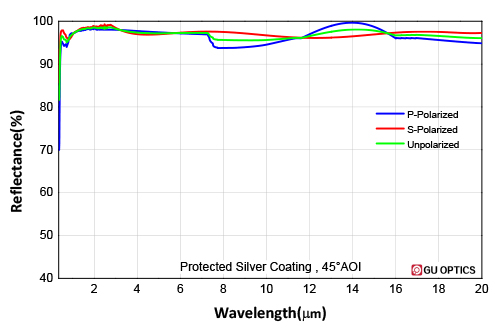

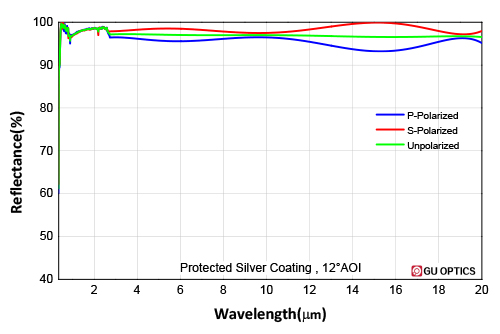

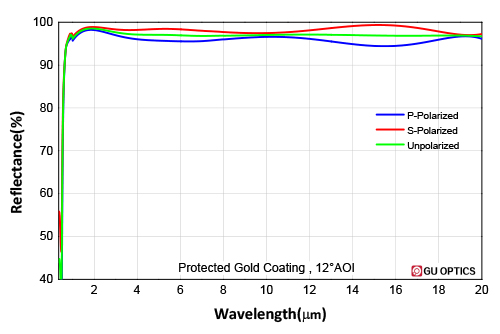

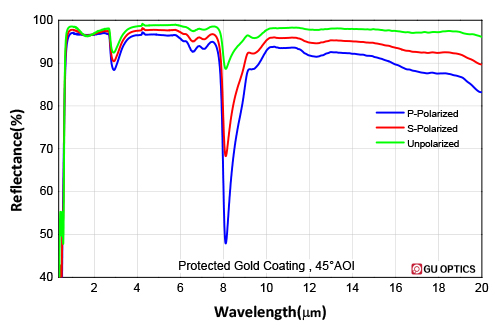

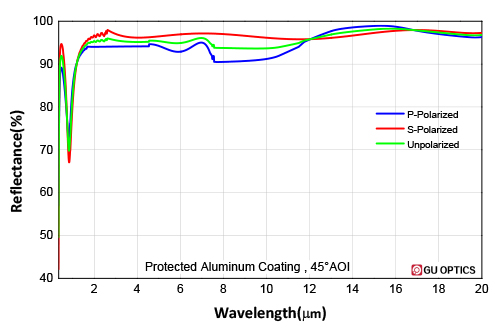

Parameters Spectrum Curve Related Products Description

Dia 25.4mm

EFL 25.4mm

PFL 12.7 mm

Off-axis 25.4mm

Applied Wavelength Range 400-2000 nm

Coating Ravg ＞85% @400 -700nm，Ravg ＞97% @ 400-2000nm

Coating Metal

Material 6061-T6

Irregularity (P-V) λ/4

Focal Length Tolerance ±1%

Off-Set Angle 90°

Surface Accuracy 80-50

RMS RMS＜100 Å

Off-Axis Mirrors Φ25.4 mm Protected Aluminum 6061-T6

Off-Axis Mirrors Φ50.8 mm Protected Aluminum 6061-T6

Grand Unified Optics provides the standard off-axis angle of 90°parabolic mirrors with a diameter of 25.4mm, 50.8mm.And Coated mirrors including protected aluminum, Protected Silver, Protected Gold.According to different coatings, it is good optical performance in the visible, near-infrared and infrared bands. The surface roughness of these off-axis parabolic mirrors is 50Å and 100Å respectively, which can effectively reduce the scattering of light in applications. They are widely used in reflective optical systems and laser focusing. For systems, terahertz and other products or related fields,We can also offer custom coatings according to your requirements.
