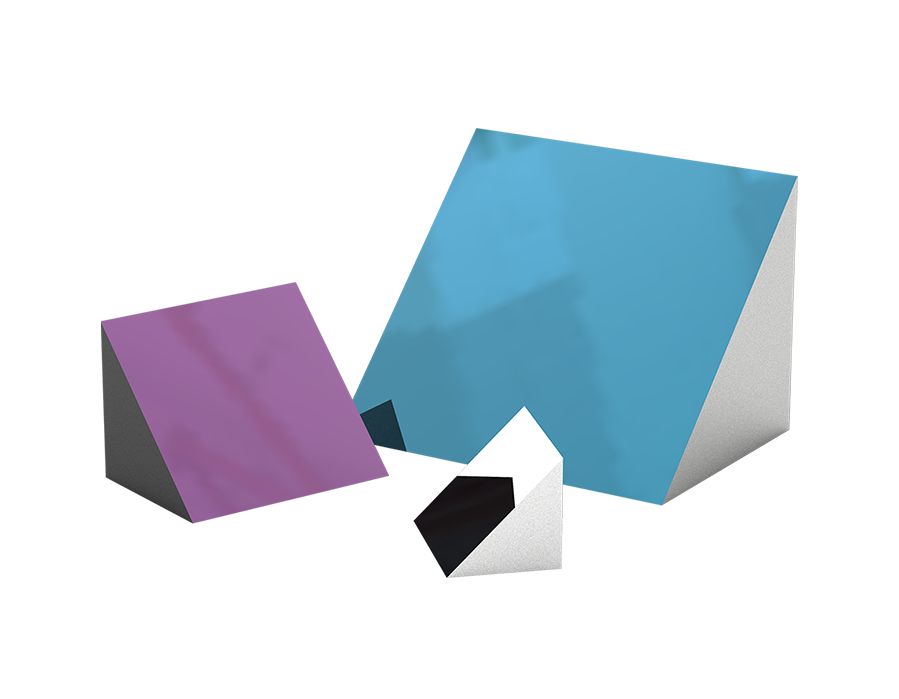

H-K9L Right Angle Mirror
Right angle mirrors can reflect incident light at 90°.  Usually used to reflect Light at 90° or curve the image path and beam deviation or image synthesis. Image Optics provides a variety of reflective coated right angle mirrors.
H-K9L Right Angle Mirror
Material H-K9LOptical Glass
Dimension Tolerance ±0.1mm
Surface Accuracy λ/4 @ 633 nm
Surface Quality 40-20
Angle Tolerance ±30 arcsec
Pyramid Tolerance <10 arcmin
Bevel Protective Bevel 0.2mmX45°
*Coating As product list
Pro No.
Parameter
Dia
Coating
Pyramid Tolerance
Surface Accuracy
Delivery time
Compare
Price
Purchase
5x5x5mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$25.00
10x10x10mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$28.33
12.5x12.5x12.5mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$30.00
15x15x15mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$33.33
20x20x20mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$33.33
25x25x25mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$40.00
30x30x30mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$52.50
40x40x40mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$81.67
50x50x50mm
Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$107.50
5x5x5mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$25.00
10x10x10mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$28.33
12.5x12.5x12.5mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$30.00
15x15x15mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$33.33
20x20x20mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$33.33
25x25x25mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$40.00
30x30x30mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$52.50
40x40x40mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$81.67
50x50x50mm
UV-Aluminum+Protected
<10arcmin
λ/4@633nm
In stock
$107.50
5x5x5mm
Silver+Protected
<10arcmin
λ/4@633nm
In stock
$27.50
10x10x10mm
Silver+Protected
<10arcmin
λ/4@633nm
In stock
$30.83
