Off-Axis Mirrors

 Off Axis Parabolic Mirror Ag

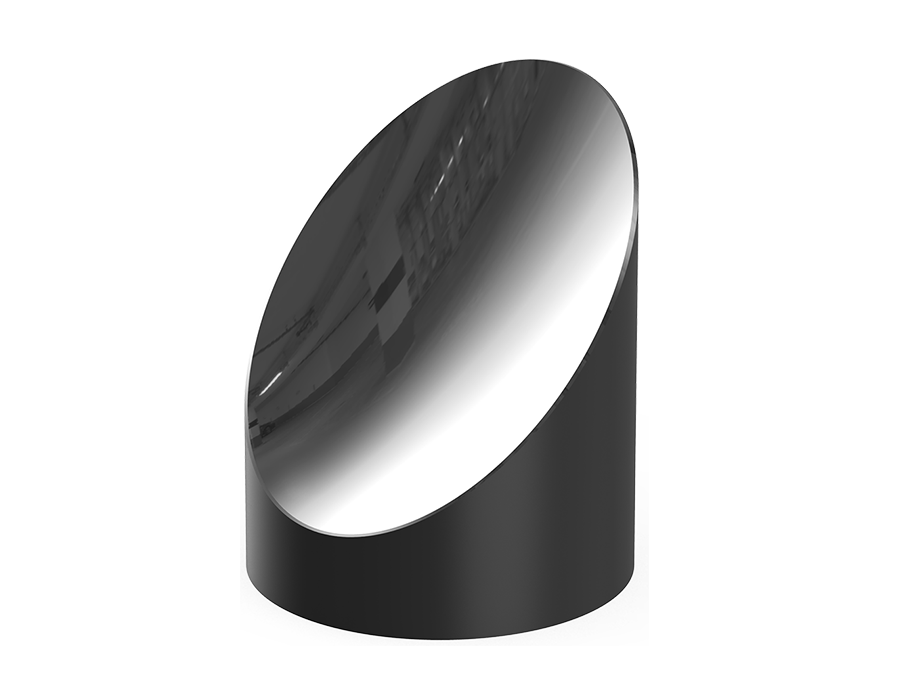

Off Axis Parabolic Mirror Ag

Grand Unified Optics provides the standard off-axis angle of 90°parabolic mirrors with a diameter of 25.4mm, 50.8mm.And Coated mirrors including protected aluminum, Protected Silver, Protected Gold.According to different coatings, it is good optical performance in the visible, near-infrared and infrared bands. The surface roughness of these off-axis parabolic mirrors is 50Å and 100Å respectively, which can effectively reduce the scattering of light in applications. They are widely used in reflective optical systems and laser focusing. For systems, terahertz and other products or related fields,We can also offer custom coatings according to your requirements.

Material 6061-T6

Surface Accuracy λ/4

Off-Set Angle 90°

Surface Quality 80-50

RMS RMS＜100 Å

Diameter Tolerance 0/-0.2mm

Focal Length Tolerance ±1%

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

EFL

Select..  

Off-axis

Select..  

Coating

Select..  

Clear

Pro No.

Parameter

Dia

EFL

Off-axis

Coating

Delivery time

Compare

Price

Purchase

312507

Parameter list

25.4mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$275.55



312508

Parameter list

25.4mm

50.8mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$275.55



312509

Parameter list

25.4mm

76.2mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$275.55



312510

Parameter list

25.4mm

101.6mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$275.55



312511

Parameter list

50.8mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$573.07



312512

Parameter list

50.8mm

101.6mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$573.07



312513

Parameter list

50.8mm

152.4mm

Ravg ＞97% @400 -2000nm，Ravg ＞97% @ 2000-10000nm

Metal

Consult



$573.07



Curve download
