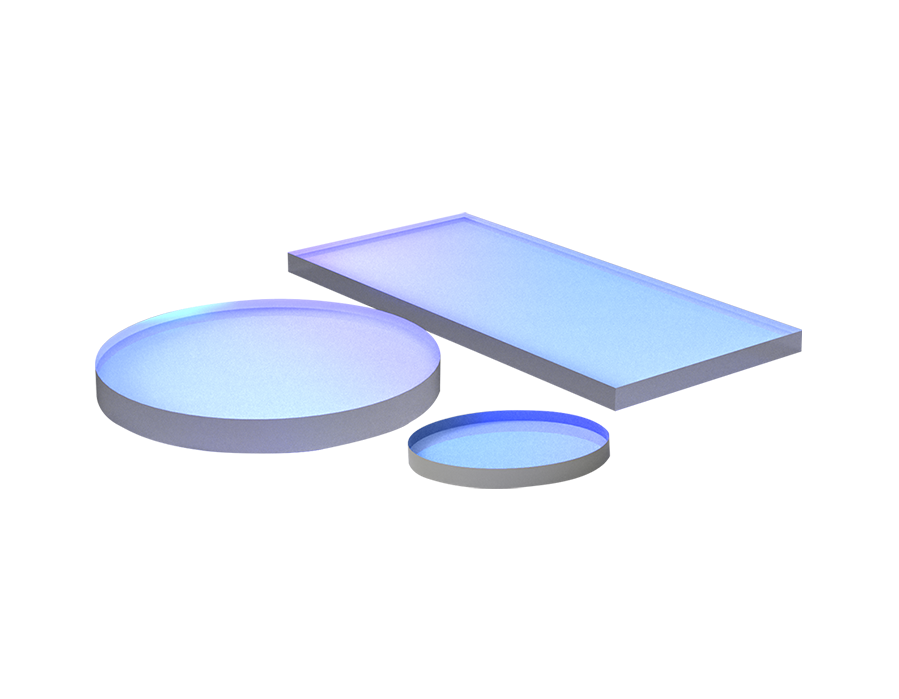

High Performance Cold Mirror

Our cold & hot mirrors are made of high quality heat-resistant borosilicate glass material. The surface is coated with high quality multi-layer dielectric coating. Hot Mirrors have a high transmission of visible light and high reflection of IR wavelengths. Cold Mirrors have a high transmission of IR wavelengths and high reflection of visible light. Hot mirrors can reduce heat and minimize impact on overall system performance. For high power illumination, additional air cooling is recommended.

Material Borosilicate glass BorofloatTM

Surface Accuracy ＜5λ/25mm2 @633nm

Parallelism ＜1arcmin

Surface Quality 60-40

Diameter Tolerance of Circular Substrate +0.0/-0.25mm

Tolerance of square (rectangular) substrate ±0.25mm

Thickness 2mm ±0.2mm

Reflection Ravg＞95% @425~675nm

Transmission Tavg＞90% @750~1150nm

Angle of Incidence 45°

Products Spectral curve Related Download

Dia

Select..  

Angle of Incidence

Select..  

 45°

Parallelism

Select..  

 <1arcmin

Material

Select..  

 Borosilicate-glass-BorofloatTM

Clear

Pro No.

Parameter

Dia

Angle of Incidence

Parallelism

Material

Delivery time

Compare

Price

Purchase

258518

Parameter list

Φ12.5x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$20.83



258519

Parameter list

12.5x12.5x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$20.83



258520

Parameter list

Φ25.0x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$29.17



258521

Parameter list

25x25x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$29.17



258522

Parameter list

35x35x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$32.50



258523

Parameter list

Φ50.0x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$50.83



258524

Parameter list

50x50x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$50.83



258525

Parameter list

80x80x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$75.00



258526

Parameter list

110x120x2mm

45°

<1arcmin

Borosilicate-glass-BorofloatTM

In stock



$112.50


