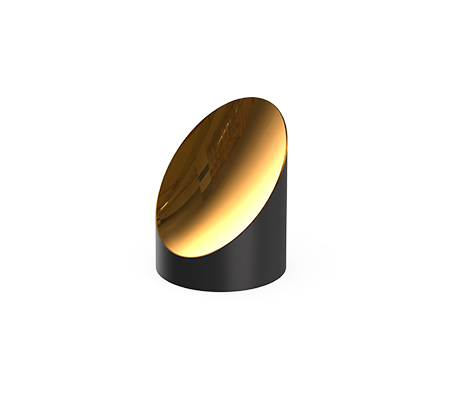

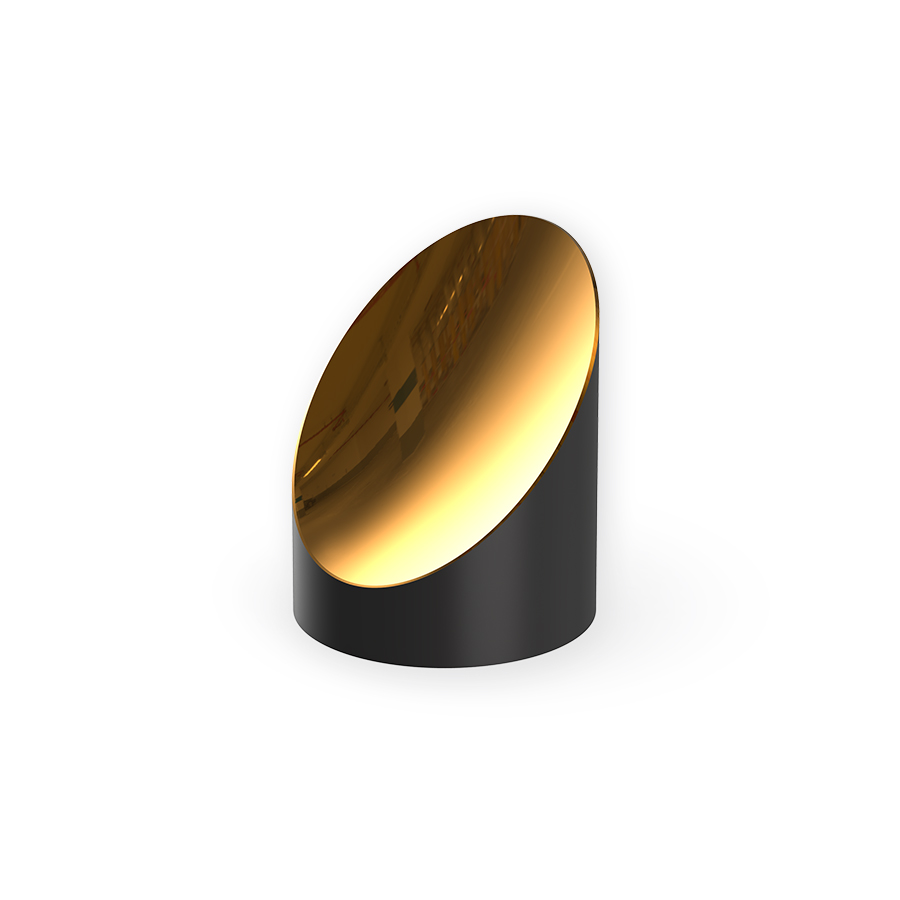

Off-Axis Mirrors Φ25.4 mm Protected Gold 6061-T6
Price Option
Product No. 312514
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Dia 25.4mm
- EFL 25.4mm
- PFL 12.7 mm
- Off-axis 25.4mm
- Applied Wavelength Range 700-10000 nm
- Coating Ravg ＞96% @700 -2000nm，Ravg ＞96% @ 2000-10000nm
- Coating Metal
- Material 6061-T6
- Irregularity (P-V) λ/4
- Focal Length Tolerance ±1%
- Off-Set Angle 90°
- Surface Accuracy 80-50
- RMS RMS＜100 Å
Grand Unified Optics provides the standard off-axis angle of 90°parabolic mirrors with a diameter of 25.4mm, 50.8mm.And Coated mirrors including protected aluminum, Protected Silver, Protected Gold.According to different coatings, it is good optical performance in the visible, near-infrared and infrared bands. The surface roughness of these off-axis parabolic mirrors is 50Å and 100Å respectively, which can effectively reduce the scattering of light in applications. They are widely used in reflective optical systems and laser focusing. For systems, terahertz and other products or related fields,We can also offer custom coatings according to your requirements.
