 Vertical Translation Stages

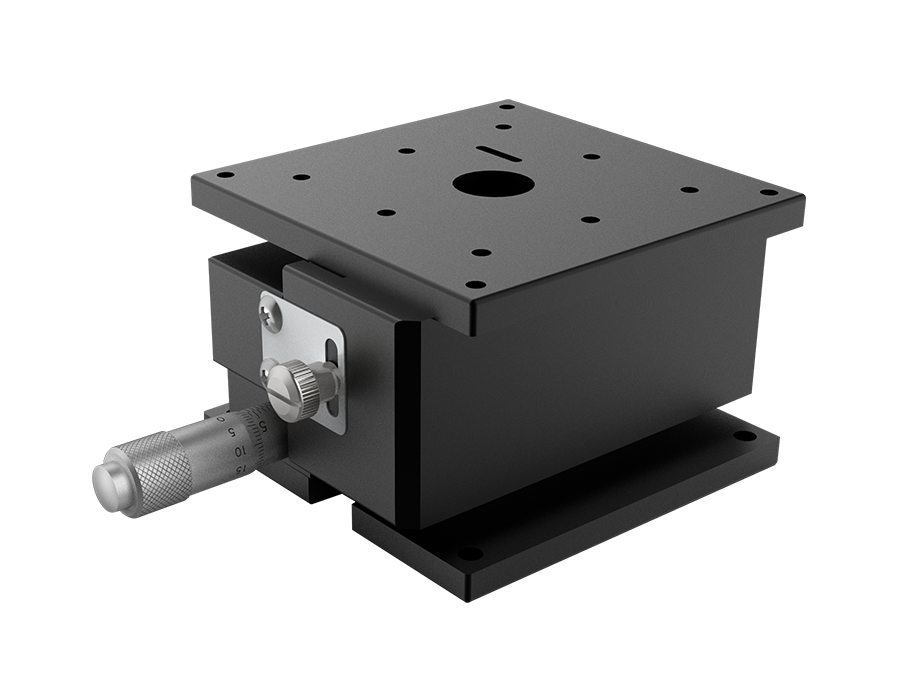

Vertical Translation Stages

Product characteristics
1. Type of Movement: Linear (Z)
2. Stage Size : 40、60、80 (mm)
3. Travel : ±3 ~±5 (mm)
4. Guide System: V-Grooved and Crossed-Roller Bearings for High accuracy and Big Load Capacity.
5. Integrated Micrometer Mounts, Support simple and precise motion.
6. Material : Aluminum alloy

Products Related Download

Platform Size

Select..  

Travel

Select..  

Resolution

Select..  

 10μm

Parallelism

Select..  

 100μm

Clear

Pro No.

Parameter

Platform Size

Travel

Resolution

Parallelism

Delivery time

Compare

Price

Purchase

518200

Parameter list

40x40mm

±3mm

10μm

100μm

In stock



$408.33



518201

Parameter list

60x60mm

±5mm

10μm

100μm

In stock



$441.67



518202

Parameter list

80x80mm

±5mm

10μm

100μm

Consult



$481.67


