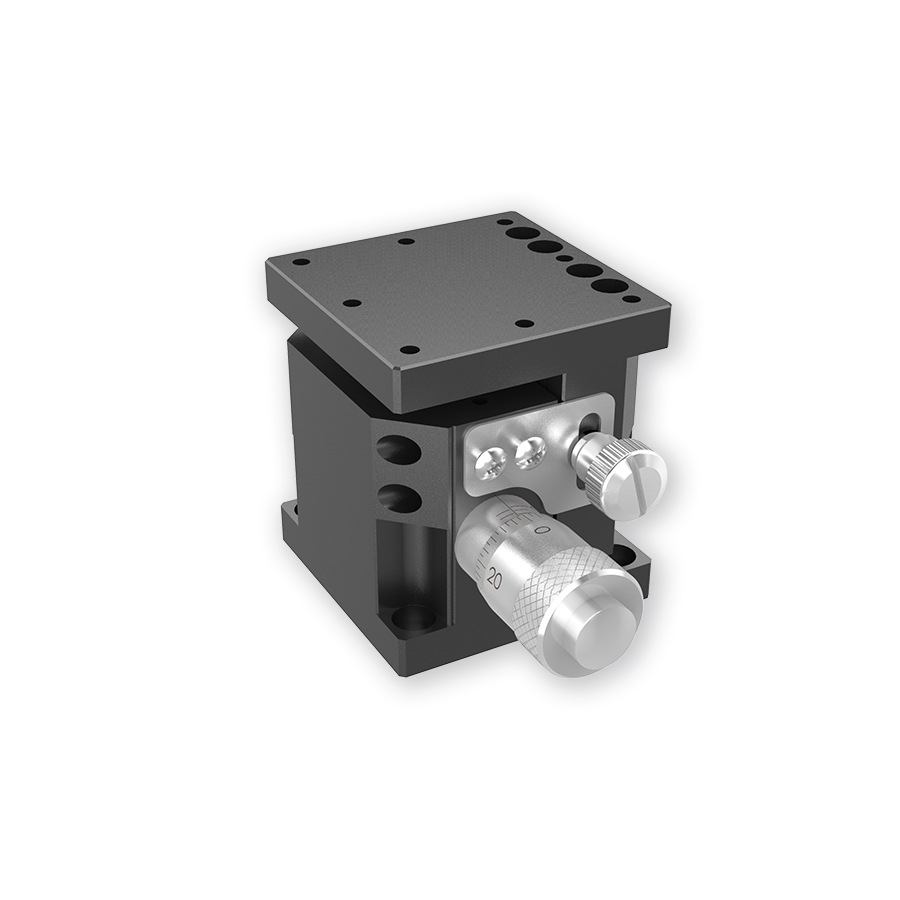

60x60mm Vertical Translation Stages





Share

WeChat

Scan and add Wechat

60x60mm Vertical Translation Stages

Price Option

Product No. 518201

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Platform Size 60x60mm

Travel ±5mm

Resolution 10μm

Parallelism 100μm

Straight Line Accuracy 3μm

Maximum Fixed Load 4kgf

Weight 0.6kg

Φ38mm Precision Rotary Stage

Φ38mm Precision Rotary Stage

40x40mm Vertical Translation Stages

80x80mm Vertical Translation Stages

Type of Movement: Linear (Z).Stage Size : 40、60、80 (mm).Travel : ±3 ~±5 (mm).Guide System: V-Grooved and Crossed-Roller Bearings for High accuracy and Big Load Capacity. Integrated Micrometer Mounts, Support simple and precise motion.Material : Aluminum alloy
