Home  Products  Vertical Translation Stages  518202

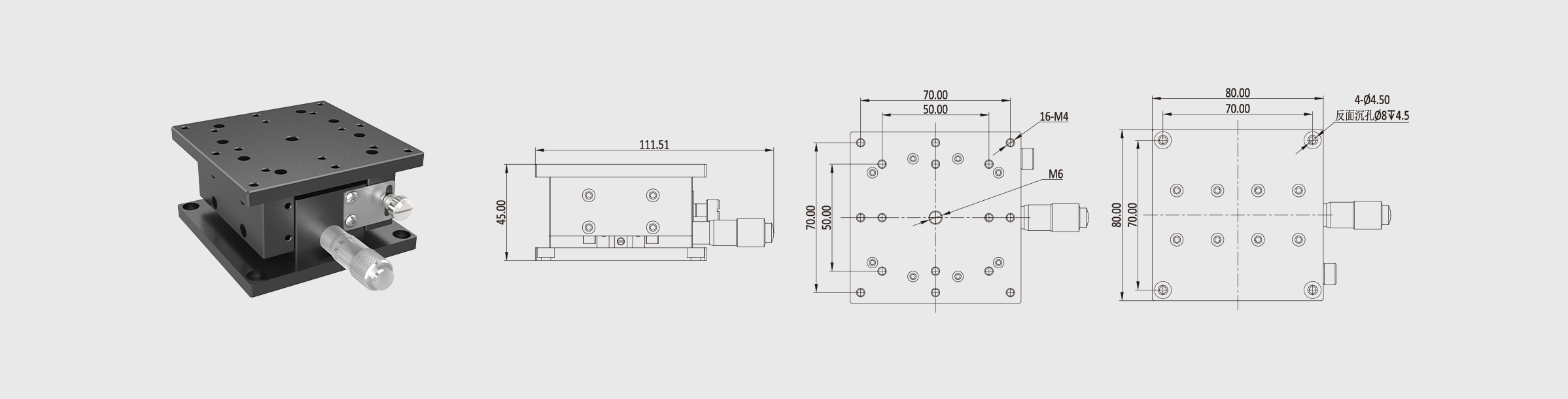

80x80mm Vertical Translation Stages





Share

WeChat

Scan and add Wechat

80x80mm Vertical Translation Stages

Price Option

Product No. 518202

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Platform Size 80x80mm

Travel ±5mm

Resolution 10μm

Parallelism 100μm

Straight Line Accuracy 3μm

Maximum Fixed Load 3kgf

Weight 1kg

Φ38mm Precision Rotary Stage

Φ38mm Precision Rotary Stage

40x40mm Vertical Translation Stages

60x60mm Vertical Translation Stages

Type of Movement: Linear (Z).Stage Size : 40、60、80 (mm).Travel : ±3 ~±5 (mm).Guide System: V-Grooved and Crossed-Roller Bearings for High accuracy and Big Load Capacity. Integrated Micrometer Mounts, Support simple and precise motion.Material : Aluminum alloy
