Tip-Tilt Stages

 Single-axis Adjustment (Dovetail)

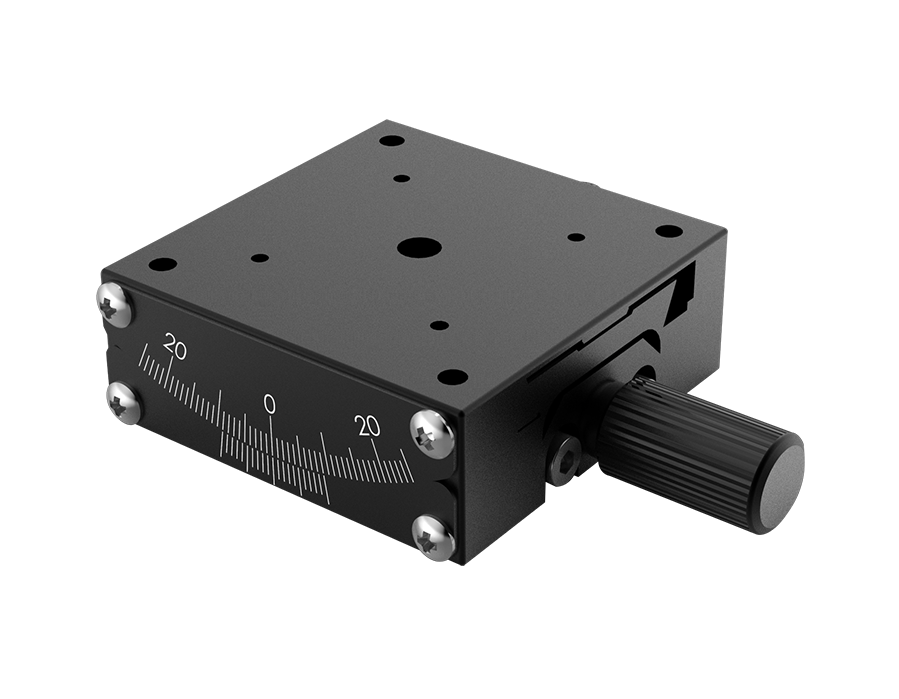

Single-axis Adjustment (Dovetail)

Product characteristics
1. α- Axis Precision Goniometer Stages
2. Single-axis (α)
3. Dual Axis: α&β
4. Platform Size : 40、60、 (mm)
5. Travel : ±80~±200
6. Guide System: Dovetail
7. Type of Drive: Worm Gear
8. Material : Aluminum alloy

Products Related Download

Platform Size

Select..  

Travel

Select..  

Distance to Point of Rotation from Top SurfaceH

Select..  

Min Micrometer Graduations

Select..  

 0.1°/Dial

Clear

Pro No.

Parameter

Platform Size

Travel

Distance to Point of Rotation from Top SurfaceH

Min Micrometer Graduations

Delivery time

Compare

Price

Purchase

518556

Parameter list

40x40mm

±20°

25mm

0.1°/Dial

Consult



$483.33



518557

Parameter list

40x40mm

±15°

60mm

0.1°/Dial

In stock



$483.33



518558

Parameter list

40x40mm

±10°

40mm

0.1°/Dial

In stock



$483.33



518559

Parameter list

60x60mm

±25°

35mm

0.1°/Dial

In stock



$500.00



518560

Parameter list

60x60mm

±20°

60mm

0.1°/Dial

Consult



$500.00



518561

Parameter list

60x60mm

±15°

80mm

0.1°/Dial

In stock



$500.00


