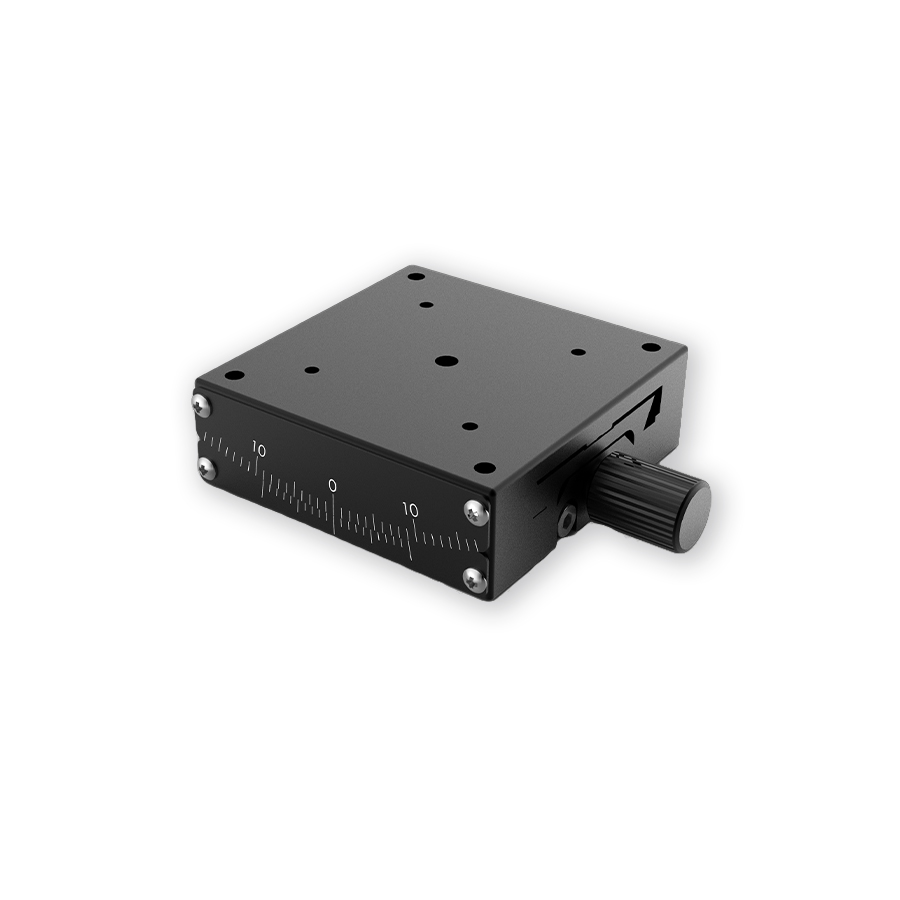

60x60mm Single-axis Adjustment (Dovetail)±15°





Share

WeChat

Scan and add Wechat

60x60mm Single-axis Adjustment (Dovetail)±15°

Price Option

Product No. 518561

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

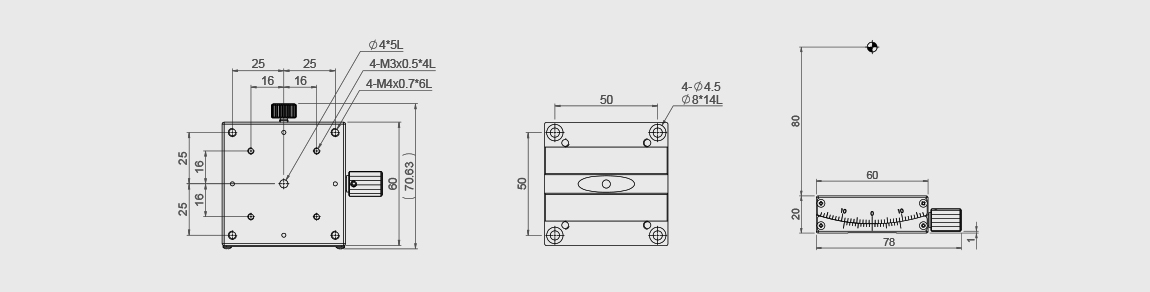

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Platform Size 60x60mm

Travel ±15°

Distance to Point of Rotation from Top SurfaceH 80mm

Min Micrometer Graduations 0.1°/Dial

Min Micrometer Graduations(one turn) 1.0°

Load Capacity 6kgf

Weight 0.55kg
