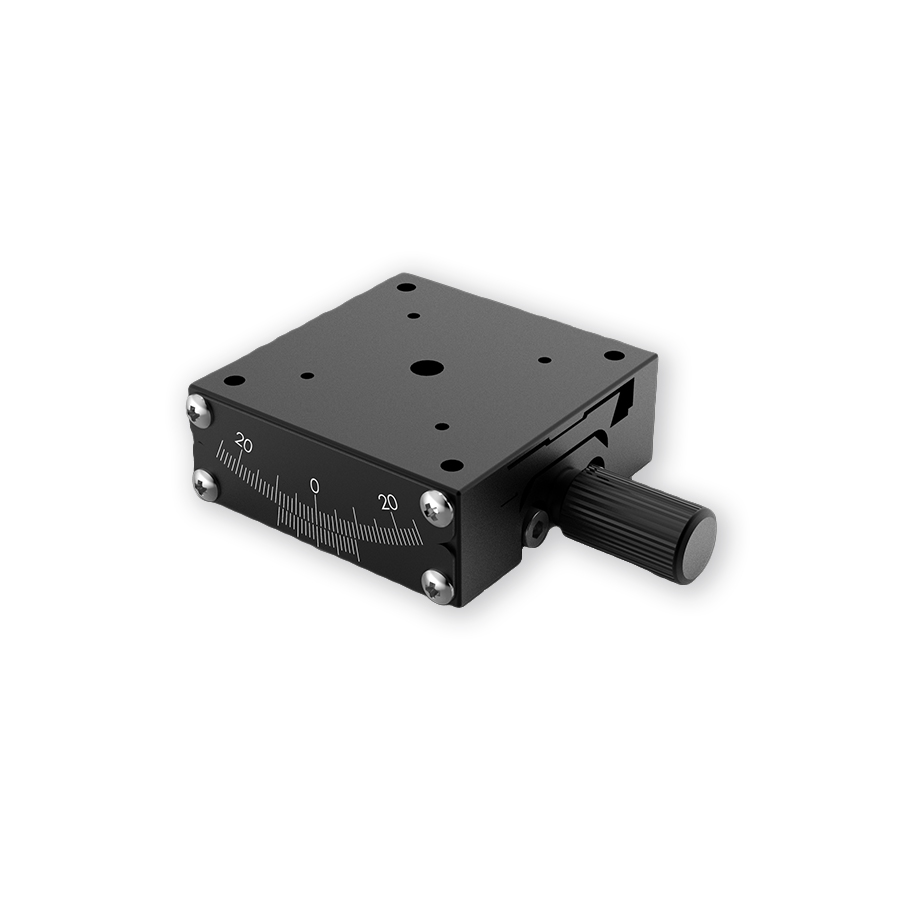

40x40mm Single-axis Adjustment (Dovetail)±20°





Share

WeChat

Scan and add Wechat

40x40mm Single-axis Adjustment (Dovetail)±20°

Price Option

Product No. 518556

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

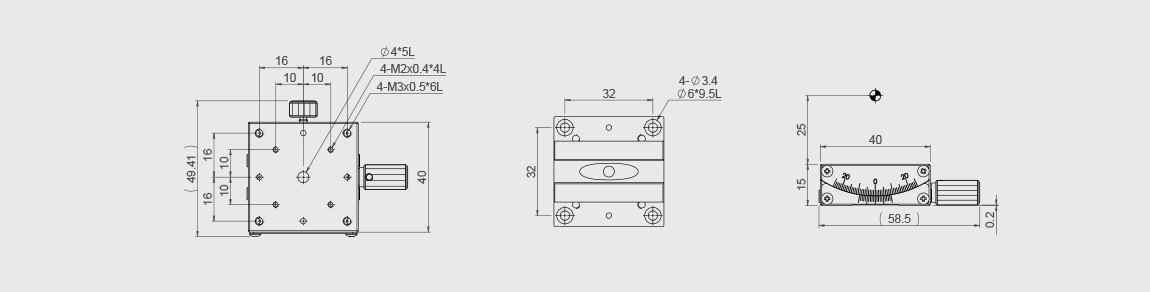

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Platform Size 40x40mm

Travel ±20°

Distance to Point of Rotation from Top SurfaceH 25mm

Min Micrometer Graduations 0.1°/Dial

Min Micrometer Graduations(one turn) 2.2°

Load Capacity 3kgf

Weight 0.18kg

40x40mm Single-axis Adjustment (Dovetail)±15°

40x40mm Single-axis Adjustment (Dovetail)±10°

60x60mm Single-axis Adjustment (Dovetail)±25°

60x60mm Single-axis Adjustment (Dovetail)±20°

α- Axis Precision Goniometer Stages Single-axis (α) Dual Axis: α&β Platform Size : 40、60、 (mm) Travel : ±80~±200 Guide System: Dovetail Type of Drive: Worm Gear Material : Aluminum alloy
