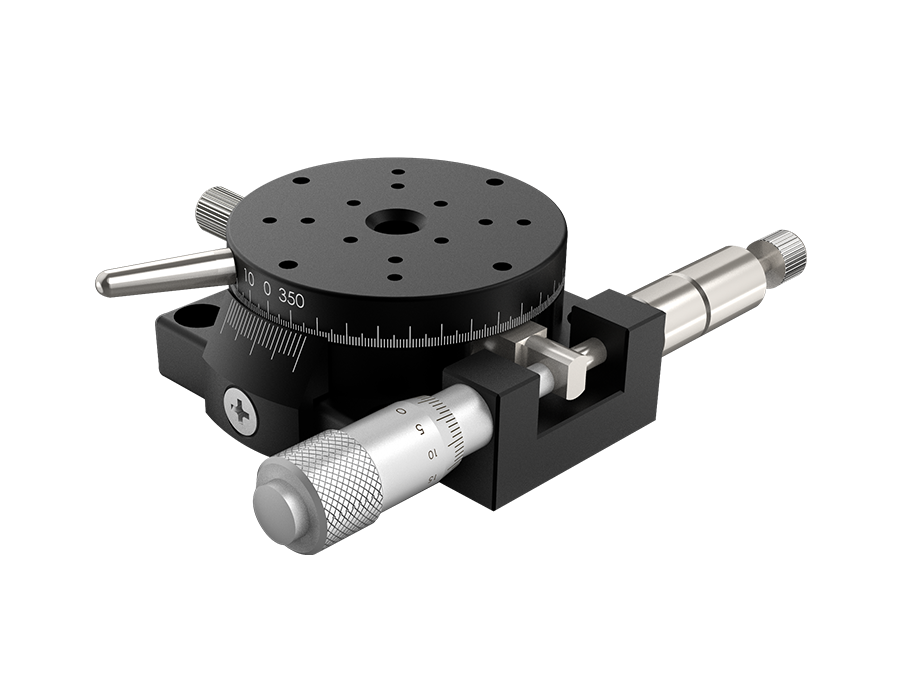

Precision Rotary Stage

 Precision Rotary Stage

Precision Rotary Stage

Product characteristics
1. θ-Axis Precision Rotary Stage
2. Stage Size (mm): Φ38、Φ60、Φ85
3. Guide System : Slide-Fit
4. Micrometer Drive Models Provide ±5° Fine Rotation
5. Material : Black Anodized Aluminum

Products Related Download

Platform Size

Select..  

Travel

Select..  

 Coarse-360°-Fine-±5°

Dial

Select..  

Concentricity

Select..  

 0.05mm

Clear

Pro No.

Parameter

Platform Size

Travel

Dial

Concentricity

Delivery time

Compare

Price

Purchase

517700

Parameter list

Φ38mm

Coarse-360°-Fine-±5°

0.2°

0.05mm

In stock



$258.33



517702

Parameter list

Φ60mm

Coarse-360°-Fine-±5°

0.2°

0.05mm

In stock



$271.67



517704

Parameter list

Φ85mm

Coarse-360°-Fine-±5°

0.1°

0.05mm

In stock



$373.33


