Wedge Windows

 H-K9L High Precision Wedge Windows

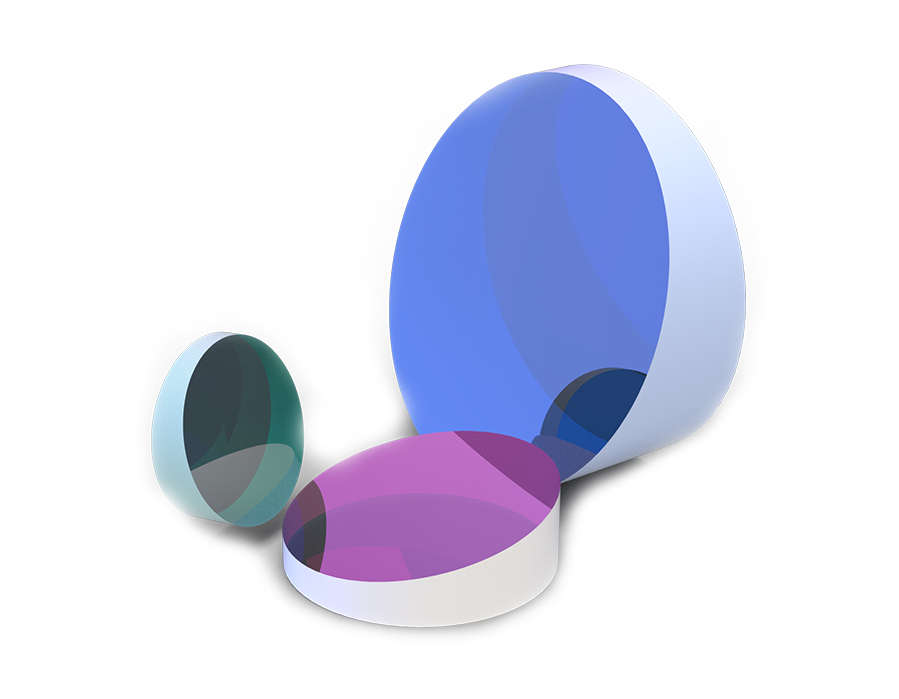

H-K9L High Precision Wedge Windows

Wedge windows can deflect the incident beam to a specified direction at a certain deflection angle. When used in pairs, the outgoing beam can be located in any direction in a pyramid which take the incident beam as the axis through the relative rotation of the two wedges. High precision wedge windows can avoid Etalon Effects caused by reflection of high-parallelism windows. Wedge windows can also prevent instability of laser output or mode hopping which caused by optical reflections. Grand Unified Optics offer uncoated or AR Coated wedged windows for your application.

Material H-K9L Optical Glass

Surface Accuracy λ/10 @ 633 nm

Wedge Angle 30 ±10 arcmin

Surface Quality 10-5

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Surface Accuracy

Select..  

 λ/10@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

197500

Parameter list

Φ12.5mm

Uncoated

λ/10@633nm

3.0mm

In stock



$19.17



197501

Parameter list

Φ12.7mm

Uncoated

λ/10@633nm

3.0mm

In stock



$19.17



197502

Parameter list

Φ25.0mm

Uncoated

λ/10@633nm

6.0mm

In stock



$29.17



197503

Parameter list

Φ25.4mm

Uncoated

λ/10@633nm

6.0mm

In stock



$29.17



197504

Parameter list

Φ38.1mm

Uncoated

λ/10@633nm

10.0mm

In stock



$82.50



197505

Parameter list

Φ50.0mm

Uncoated

λ/10@633nm

10.0mm

In stock



$112.50



197506

Parameter list

Φ50.8mm

Uncoated

λ/10@633nm

10.0mm

In stock



$112.50



197507

Parameter list

Φ12.5mm

AR@350~700nm

λ/10@633nm

3.0mm

In stock



$24.17



197508

Parameter list

Φ12.7mm

AR@350~700nm

λ/10@633nm

3.0mm

In stock



$24.17



197509

Parameter list

Φ25.0mm

AR@350~700nm

λ/10@633nm

6.0mm

In stock



$35.83



197510

Parameter list

Φ25.4mm

AR@350~700nm

λ/10@633nm

6.0mm

In stock



$35.83



197511

Parameter list

Φ38.1mm

AR@350~700nm

λ/10@633nm

10.0mm

In stock



$75.00



197512

Parameter list

Φ50.0mm

AR@350~700nm

λ/10@633nm

10.0mm

In stock



$121.67



197513

Parameter list

Φ50.8mm

AR@350~700nm

λ/10@633nm

10.0mm

In stock



$121.67



197514

Parameter list

Φ12.5mm

AR@600-1100nm

λ/10@633nm

3.0mm

In stock



$24.17



197515

Parameter list

Φ12.7mm

AR@600-1100nm

λ/10@633nm

3.0mm

In stock



$24.17



197516

Parameter list

Φ25.0mm

AR@600-1100nm

λ/10@633nm

6.0mm

In stock



$35.83



197517

Parameter list

Φ25.4mm

AR@600-1100nm

λ/10@633nm

6.0mm

In stock



$35.83



197518

Parameter list

Φ38.1mm

AR@600-1100nm

λ/10@633nm

10.0mm

In stock



$75.00



197519

Parameter list

Φ50.0mm

AR@600-1100nm

λ/10@633nm

10.0mm

In stock



$121.67



More products >>

Curve download

UV Fused Silica Single Surface Optical Flats

UV Fused Silica High Precision Wedge Window

H-K9L Glass Dome Window

Fused Silica Dome Window
