UV Fused Silica Single Surface Optical Flats

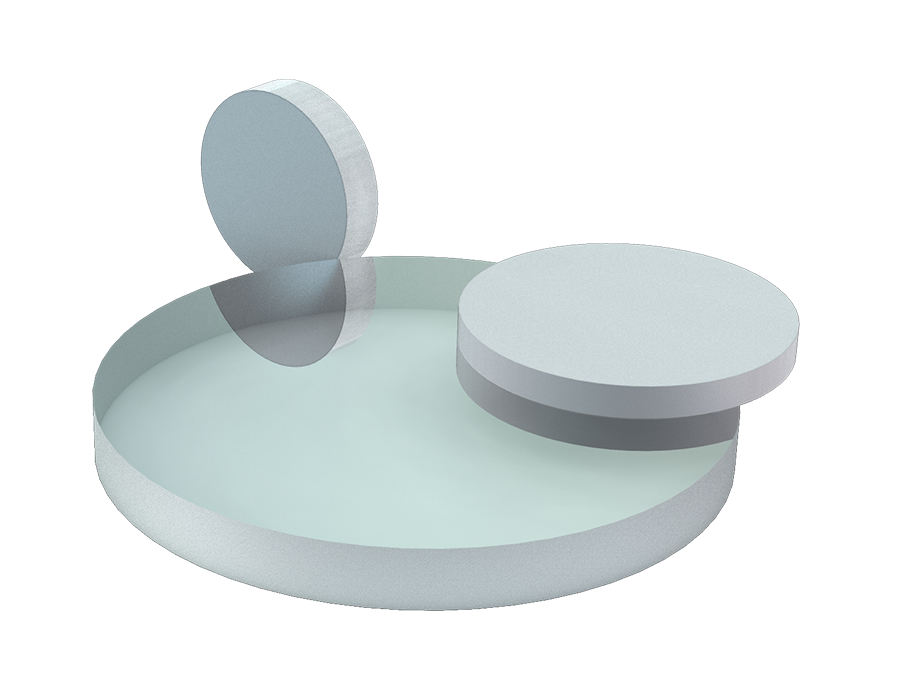

UV Fused Silica Single Surface Optical Flats
    The optical flats are used to measure the flatness error of plano optical components with high surface quality.
UV Fused Silica Single Surface Optical Flats
Material UV Fused Silica
Surface Flatness As product list
Parallelism ＜ 1 arcmin
Back Fine Ground
Diameter Tolerance As product list
Thickness Tolerance As product list
Bevel Protective Bevel 0.2~0.5mmX45°
Coating Uncoated

Dia

Thickness

Surface Accuracy

Parallelism

Clear
Pro No.
Parameter
Dia
Thickness
Surface Accuracy
Parallelism
Delivery time
Compare
Price
Purchase
192564
Parameter list
Φ25.4mm
12.7±1mm
λ/20@633nm
＜ 1arcmin
In stock
$108.33
192565
Parameter list
Φ50.8mm
12.7±1mm
λ/20@633nm
＜ 1arcmin
In stock
$175.00
192566
Parameter list
Φ76.2mm
19.1±1mm
λ/20@633nm
＜ 1arcmin
In stock
$325.00
192567
Parameter list
Φ101.6mm
19.1±1mm
λ/20@633nm
＜ 1arcmin
In stock
$525.00
192568
Parameter list
Φ152.4mm
25.4±2mm
λ/20@633nm
＜ 1arcmin
Consult
$1750.00
192569
Parameter list
Φ203.2mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$3083.33
192570
Parameter list
Φ254.0mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$5750.00
192571
Parameter list
Φ304.8mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$8250.00
192572
Parameter list
Φ25.4mm
12.7±1mm
λ/10@633nm
＜ 1arcmin
In stock
$70.83
192573
Parameter list
Φ50.8mm
12.7±1mm
λ/10@633nm
＜ 1arcmin
In stock
$108.33
192574
Parameter list
Φ76.2mm
19.1±1mm
λ/10@633nm
＜ 1arcmin
Consult
$241.67
192575
Parameter list
Φ101.6mm
19.1±1mm
λ/10@633nm
＜ 1arcmin
Consult
$491.67
192576
Parameter list
Φ152.4mm
25.4±2mm
λ/10@633nm
＜ 1arcmin
In stock
$1125.00
192577
Parameter list
Φ203.2mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
Consult
$2416.67
192578
Parameter list
Φ254.0mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
In stock
$3500.00
192579
Parameter list
Φ304.8mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
Consult
$5583.33
