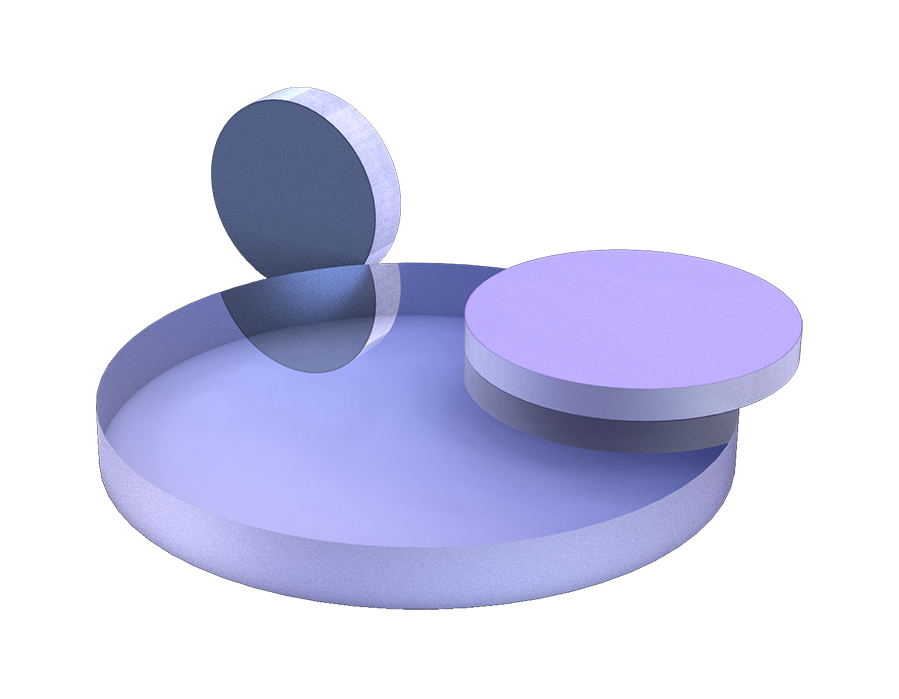

H-K9L Single Surface Optical Flats
    The optical flats are used to measure the flatness error of plano optical components with high surface quality.
H-K9L Single Surface Optical Flats
Material H-K9L Optical Glass
Surface Accuracy As product list
Parallelism ＜ 1 arcmin
Surface Quality 40-20
Back Fine Ground
Diameter Tolerance ±0.2mm
Thickness Tolerance As product list
Bevel Protective Bevel 0.2~0.5mmX45°
Coating Uncoated

Dia

Thickness

Surface Accuracy

Parallelism

Clear
Pro No.
Parameter
Dia
Thickness
Surface Accuracy
Parallelism
Delivery time
Compare
Price
Purchase
192548
Parameter list
Φ25.4mm
12.7±1mm
λ/20@633nm
＜ 1arcmin
In stock
$49.23
192549
Parameter list
Φ50.8mm
12.7±1mm
λ/20@633nm
＜ 1arcmin
In stock
$90.00
192550
Parameter list
Φ76.2mm
19.1±1mm
λ/20@633nm
＜ 1arcmin
In stock
$130.00
192551
Parameter list
Φ101.6mm
19.1±1mm
λ/20@633nm
＜ 1arcmin
In stock
$390.00
192552
Parameter list
Φ152.4mm
25.4±2mm
λ/20@633nm
＜ 1arcmin
Consult
$930.00
192553
Parameter list
Φ203.2mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$1330.00
192554
Parameter list
Φ254.0mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$2750.00
192555
Parameter list
Φ304.8mm
38.1±2mm
λ/20@633nm
＜ 1arcmin
Consult
$5550.00
192556
Parameter list
Φ25.4mm
12.7±1mm
λ/10@633nm
＜ 1arcmin
In stock
$35.38
192557
Parameter list
Φ50.8mm
12.7±1mm
λ/10@633nm
＜ 1arcmin
In stock
$70.00
192558
Parameter list
Φ76.2mm
19.1±1mm
λ/10@633nm
＜ 1arcmin
In stock
$100.00
192559
Parameter list
Φ101.6mm
19.1±1mm
λ/10@633nm
＜ 1arcmin
In stock
$300.00
192560
Parameter list
Φ152.4mm
25.4±2mm
λ/10@633nm
＜ 1arcmin
In stock
$950.00
192561
Parameter list
Φ203.2mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
Consult
$1290.00
192562
Parameter list
Φ254.0mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
Consult
$1530.00
192563
Parameter list
Φ304.8mm
38.1±2mm
λ/10@633nm
＜ 1arcmin
Consult
$2900.00
