High Precision H-K9L Dual Surface Optical Flats

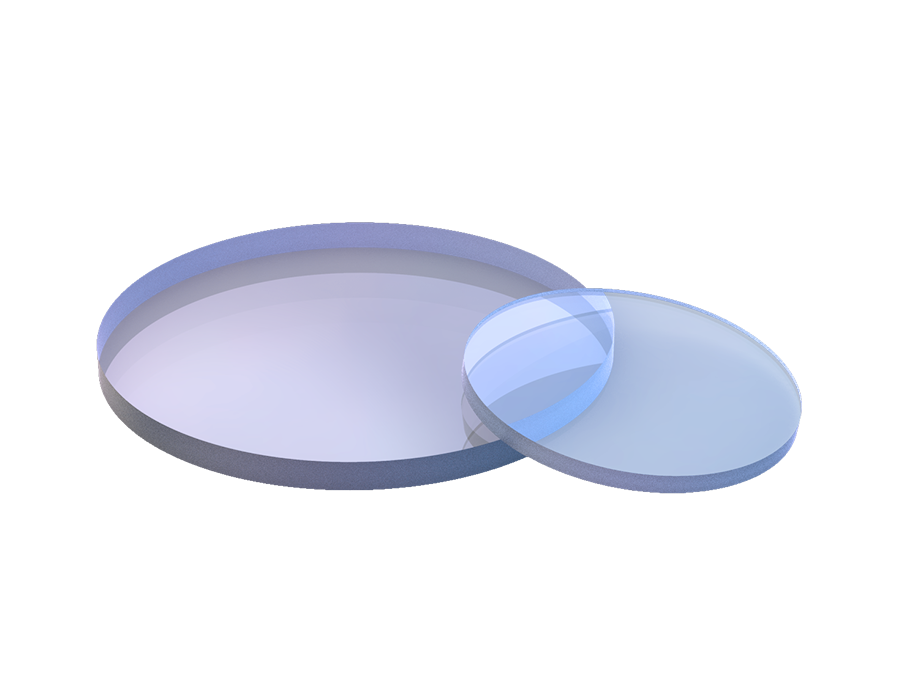

High Precision H-K9L Dual Surface Optical Flats
The optical flats are used to measure the flatness error of plano optical components with high surface quality.
High Precision H-K9L Dual Surface Optical Flats
Material H-K9L Optical Glass
Surface Accuracy λ/ 10 @ 633 nm
Parallelism As product list
Surface Quality 40-20
Diameter Tolerance ±0.2mm
Thickness Tolerance As product list
Bevel Protective Bevel 0.2~0.5mmX45°
Coating Uncoated

Dia

Thickness

Surface Accuracy

Parallelism

Clear
Pro No.
Parameter
Dia
Thickness
Surface Accuracy
Parallelism
Delivery time
Compare
Price
Purchase
192500
Parameter list
Φ25.4mm
12.7±1mm
λ/10@633nm
＜5arcsec
In stock
$50.00
192501
Parameter list
Φ50.8mm
12.7±1mm
λ/10@633nm
＜5arcsec
In stock
$91.67
192502
Parameter list
Φ76.2mm
19.1±1mm
λ/10@633nm
＜5arcsec
In stock
$125.00
192503
Parameter list
Φ101.6mm
19.1±1mm
λ/10@633nm
＜5arcsec
In stock
$341.67
192504
Parameter list
Φ152.4mm
25.4±2mm
λ/10@633nm
＜5arcsec
In stock
$1250.00
192505
Parameter list
Φ203.2mm
38.1±2mm
λ/10@633nm
＜5arcsec
Consult
$1775.00
192506
Parameter list
Φ254.0mm
38.1±2mm
λ/10@633nm
＜5arcsec
Consult
$2250.00
192507
Parameter list
Φ304.8mm
38.1±2mm
λ/10@633nm
＜5arcsec
Consult
$5250.00
192508
Parameter list
Φ25.4mm
12.7±1mm
λ/10@633nm
2’+0/-30”
In stock
$50.00
192509
Parameter list
Φ50.8mm
12.7±1mm
λ/10@633nm
2’+0/-30”
In stock
$66.67
192510
Parameter list
Φ76.2mm
19.1±1mm
λ/10@633nm
2’+0/-30”
In stock
$108.33
192511
Parameter list
Φ101.6mm
19.1±1mm
λ/10@633nm
2’+0/-30”
Consult
$308.33
192512
Parameter list
Φ152.4mm
25.4±2mm
λ/10@633nm
2’+0/-30”
Consult
$1133.33
192513
Parameter list
Φ203.2mm
38.1±2mm
λ/10@633nm
2’+0/-30”
Consult
$1583.33
192514
Parameter list
Φ254.0mm
38.1±2mm
λ/10@633nm
2’+0/-30”
Consult
$2158.33
192515
Parameter list
Φ304.8mm
38.1±2mm
λ/10@633nm
2’+0/-30”
Consult
$4333.33
