 UV Fused Silica High Precision Wedge Window

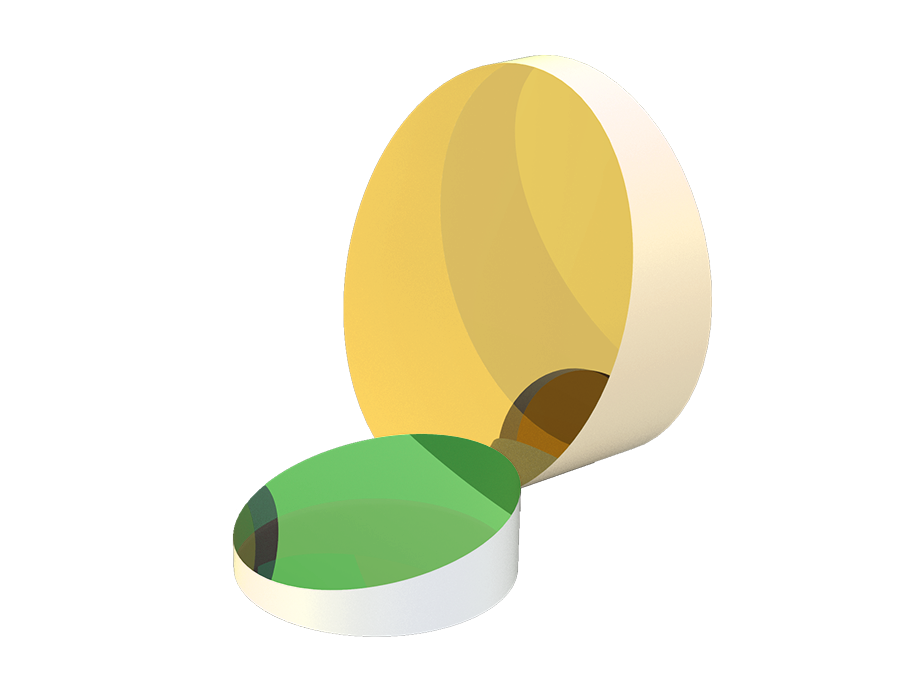

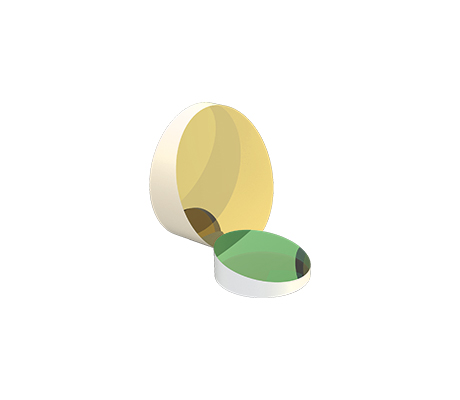

UV Fused Silica High Precision Wedge Window

Wedge windows can deflect the incident beam to a specified direction at a certain deflection angle. When used in pairs, the outgoing beam can be located in any direction in a pyramid which take the incident beam as the axis through the relative rotation of the two wedges. High precision wedge windows can avoid Etalon Effects caused by reflection of high-parallelism windows. Wedge windows can also prevent instability of laser output or mode hopping which caused by optical reflections. Grand Unified Optics offer uncoated or AR Coated wedged windows for your application.

Material UV Fused Silica

Surface Accuracy λ/10 @ 633 nm

Wedge 30±10 arcmin

Surface Quality 10-5

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Coating

Select..  

Surface Accuracy

Select..  

 λ/10@633nm

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Coating

Surface Accuracy

Thickness

Delivery time

Compare

Price

Purchase

197528

Parameter list

Φ12.5mm

Uncoated

λ/10@633nm

3.0mm

In stock



$34.17



197529

Parameter list

Φ12.7mm

Uncoated

λ/10@633nm

3.0mm

In stock



$34.17



197530

Parameter list

Φ25.0mm

Uncoated

λ/10@633nm

6.0mm

In stock



$55.83



197531

Parameter list

Φ25.4mm

Uncoated

λ/10@633nm

6.0mm

In stock



$55.83



197532

Parameter list

Φ38.1mm

Uncoated

λ/10@633nm

10.0mm

In stock



$101.67



197533

Parameter list

Φ50.0mm

Uncoated

λ/10@633nm

10.0mm

Consult



$125.00



197534

Parameter list

Φ50.8mm

Uncoated

λ/10@633nm

10.0mm

In stock



$125.00



197548

Parameter list

Φ12.5mm

AR@250~425nm

λ/10@633nm

3.0mm

In stock



$42.50



197549

Parameter list

Φ12.7mm

AR@250~425nm

λ/10@633nm

3.0mm

In stock



$42.50



197550

Parameter list

Φ25.0mm

AR@250~425nm

λ/10@633nm

6.0mm

In stock



$69.17



197551

Parameter list

Φ25.4mm

AR@250~425nm

λ/10@633nm

6.0mm

In stock



$69.17



197552

Parameter list

Φ38.1mm

AR@250~425nm

λ/10@633nm

10.0mm

In stock



$116.67



197553

Parameter list

Φ50.0mm

AR@250~425nm

λ/10@633nm

10.0mm

In stock



$142.50



197554

Parameter list

Φ50.8mm

AR@250~425nm

λ/10@633nm

10.0mm

In stock



$142.50



197555

Parameter list

Φ12.5mm

AR@350~700nm

λ/10@633nm

3.0mm

In stock



$39.17



197556

Parameter list

Φ12.7mm

AR@350~700nm

λ/10@633nm

3.0mm

In stock



$39.17



197557

Parameter list

Φ25.0mm

AR@350~700nm

λ/10@633nm

6.0mm

In stock



$62.50



197558

Parameter list

Φ25.4mm

AR@350~700nm

λ/10@633nm

6.0mm

In stock



$62.50



197559

Parameter list

Φ38.1mm

AR@350~700nm

λ/10@633nm

10.0mm

Consult



$110.00



197560

Parameter list

Φ50.0mm

AR@350~700nm

λ/10@633nm

10.0mm

In stock



$134.17



More products >>

Curve download

UV Fused Silica Single Surface Optical Flats

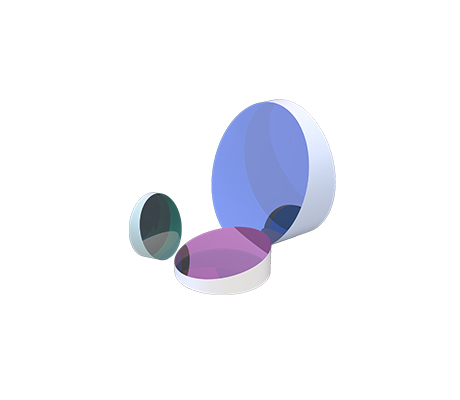

H-K9L High Precision Wedge Windows
