Dome Window

 Fused Silica Dome Window

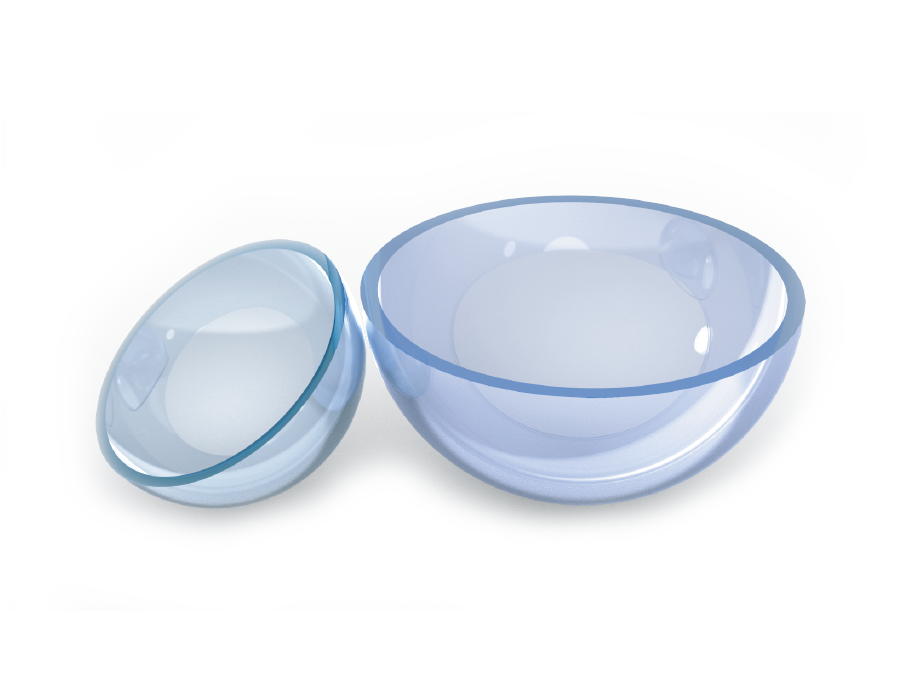

Fused Silica Dome Window

Dome windows are often used as wide angle protective windows for optical detectors, optical sensor and other electrical components.

Material Fused Silica

Surface Accuracy ΔN＜10 @ 633 nm (Partial)

Surface Quality 60-40

Diameter Tolerance +0.0/-0.2mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

Height

Select..  

Coating

Select..  

 Uncoated

Thickness

Select..  

Clear

Pro No.

Parameter

Dia

Height

Coating

Thickness

Delivery time

Compare

Price

Purchase

197539

Parameter list

Φ25.0mm

11.5mm

Uncoated

1.0mm

Consult



$291.67



197540

Parameter list

Φ50.0mm

24.0mm

Uncoated

2.0mm

In stock



$558.33



197541

Parameter list

Φ75.0mm

36.5mm

Uncoated

3.0mm

In stock



$825.00



197542

Parameter list

Φ100.0mm

49.0mm

Uncoated

4.0mm

In stock



$1250.00


