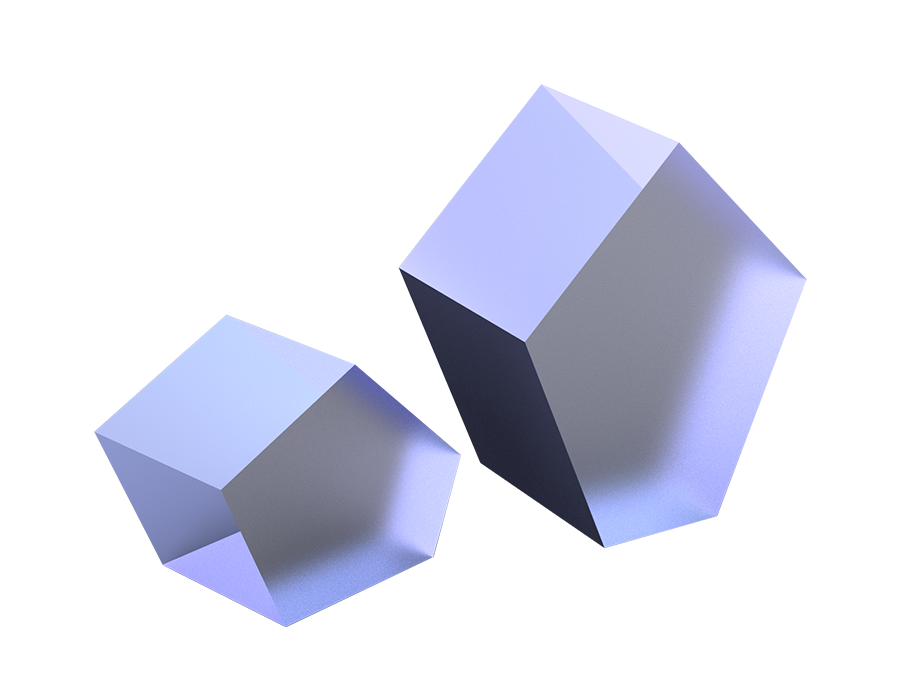

H-K9L Penta Prisms
Penta prism can deflect light by 90°, it is a five-sided prism, the reflected light is not affected by slight movements of the prism, so it can be used to define right angles in optical systems.
H-K9L Penta Prisms
Material H-K9L Optical Glass
Dimension Tolerance +0.0/-0.2mm
Beam Deviation As product list
Surface Accuracy λ/10 @ 632.8nm
Surface Quality 40-20
Bevel <0.25mmX45°
Coating Reflected surface (Aluminum Coated + Black paint protected)、 Incident surface and emitted Surface (single layer MgF2 AR coated)

Coating:Reflected surface

Coating:Incident surface and emitted Surface

Pro No.
Parameter
Size(A B C)
Dia(D)
Coating:Reflected surface
Coating:Incident surface and emitted Surface
Delivery time
Compare
Price
Purchase
A=B=C=5.0mm
5.45mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$20.83
A=B=C=5.0mm
5.45mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$47.50
A=B=C=10.0mm
10.82mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$42.50
A=B=C=20.0mm
21.65mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$52.50
A=B=C=30.0mm
32.47mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$75.00
A=B=C=40.0mm
43.30mm
Aluminum-Coated+Black-paint-protected
single-layer-MgF2-AR-coated
In stock
$125.00

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:

This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
