Roof Prisms

H-K9L Roof Prisms

 H-K9L Roof Prisms

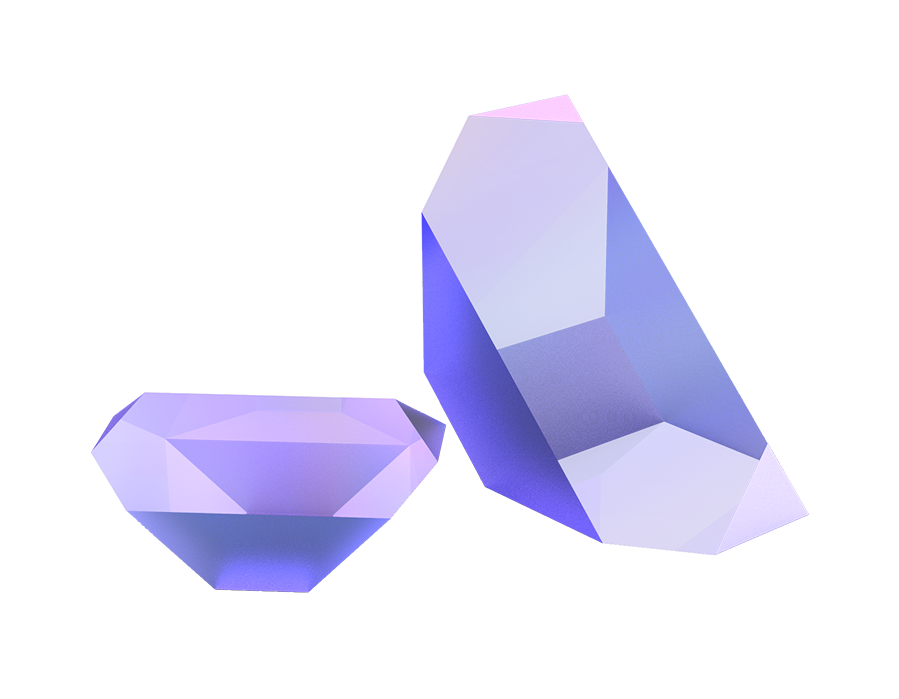

H-K9L Roof Prisms

Roof prisms can revert and invert the image or bend the deflected light by the angle of 90°.
It is ideal for telescope and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up and bend it through a 90° angle in order to maintain the correct visual orientation.

Material H-K9L Optical Glass

Dimension Tolerance +0.0/-0.1mm

Surface Accuracy λ/10 @ 632.8nm

Surface Quality 40-20

Roof Angle Tolerance ±3 arcsec

Other Angles Tolerance ±3 arcmin

Bevel ＜ 0.25mmX45°

Coating Uncoated

Products Spectral curve Related Download

Size

Select..  

Clear Aperture

Select..  

Coating

Select..  

 Uncoated

Surface Accuracy

Select..  

 λ/10@632.8nm

Clear

Pro No.

Parameter

Size

Clear Aperture

Coating

Surface Accuracy

Delivery time

Compare

Price

Purchase

369500

Parameter list

A=27.40mmB=20.0mmC=20.0mm

Ф19mm

Uncoated

λ/10@632.8nm

In stock



$58.33



369501

Parameter list

A=41.1mmB=30.0mmC=30.0mm

Ф29mm

Uncoated

λ/10@632.8nm

In stock



$65.83



369502

Parameter list

A=13.7mmB=10.0mmC=10.0mm

Ф9mm

Uncoated

λ/10@632.8nm

In stock



$79.17



369503

Parameter list

A=20.55mmB=15.0mmC=15.0mm

Ф14mm

Uncoated

λ/10@632.8nm

In stock



$125.00



Curve download

H-K9L Corner Retroreflectors

UV Fused Silica Corner Retroreflectors

H-K9L High Precision Wedge Prisms

UV Fused Silica High Precision Wedge Prisms

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
