Wedge Prisms

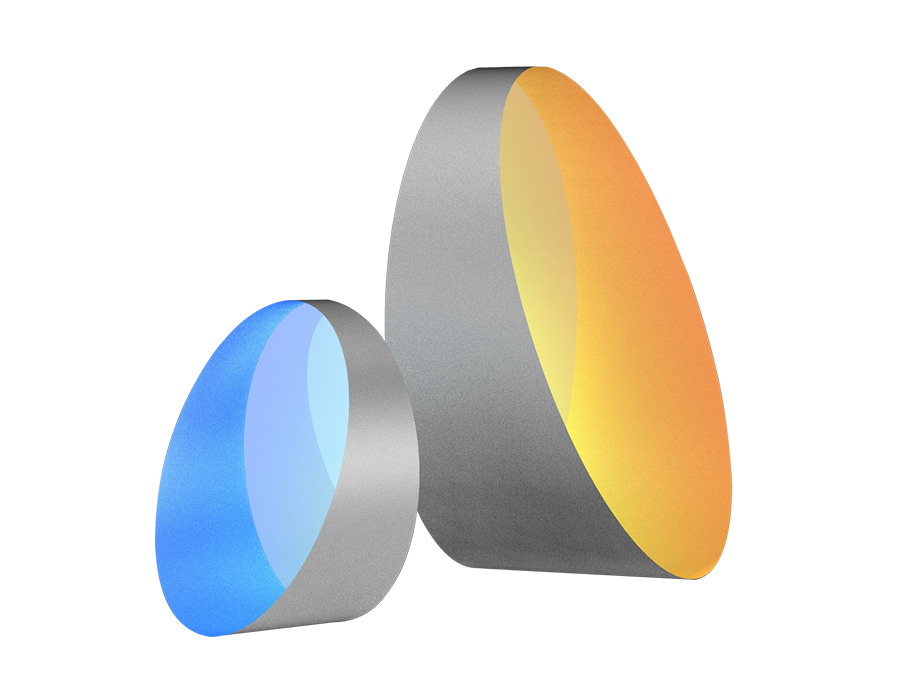

 H-K9L High Precision Wedge Prisms

H-K9L High Precision Wedge Prisms

deflect the incident beam to a specified direction at a certain deflection angle. When used in pairs, the outgoing beam can be located in any direction in a pyramid which take the incident beam as the axis through the relative rotation of the two wedge prism. The wedge angle and rear AR coating of the wedge prism can reduce the interference of the ghost image. High precision substrates can ensure the reflection and transmission wavefront error. Image Optics can provide various of wedge prism with different splitting ratio for your application.

Material H-K9L Optical Glass

Surface Accuracy λ/10 @ 633 nm

Angle Tolerance ±30arcsec

Surface Quality 20-10

Diameter Tolerance +0.0/-0.1mm

Thickness Tolerance ±0.2mm

Bevel Protective Bevel 0.2~0.5mmX45°

Coating As product list

Products Spectral curve Related Download

Dia

Select..  

 Φ25.0mm

Wedge Angle

Select..  

Coating

Select..  

Beam Deviation@355nm

Select..  

Clear

Pro No.

Parameter

Dia

Wedge Angle

Coating

Beam Deviation@355nm

Delivery time

Compare

Price

Purchase

373500

Parameter list

Φ25.0mm

0°58’

Uncoated

0.5°

In stock



$29.17



373501

Parameter list

Φ25.0mm

0°58’

AR@350-700nm

0.5°

In stock



$35.83



373502

Parameter list

Φ25.0mm

0°58’

AR@600-1100nm

0.5°

In stock



$38.33



373503

Parameter list

Φ25.0mm

0°58’

AR@900-1700nm

0.5°

In stock



$38.33



373504

Parameter list

Φ25.0mm

1°56’

Uncoated

1°

In stock



$29.17



373505

Parameter list

Φ25.0mm

1°56’

AR@350-700nm

1°

In stock



$35.83



373506

Parameter list

Φ25.0mm

1°56’

AR@600-1100nm

1°

In stock



$38.33



373507

Parameter list

Φ25.0mm

1°56’

AR@900-1700nm

1°

In stock



$38.33



373508

Parameter list

Φ25.0mm

3°52’

Uncoated

2°

Consult



$29.17



373509

Parameter list

Φ25.0mm

3°52’

AR@350-700nm

2°

In stock



$35.83



373510

Parameter list

Φ25.0mm

3°52’

AR@600-1100nm

2°

In stock



$38.33



373511

Parameter list

Φ25.0mm

3°52’

AR@900-1700nm

2°

In stock



$38.33



373512

Parameter list

Φ25.0mm

7°41’

Uncoated

4°

In stock



$29.17



373513

Parameter list

Φ25.0mm

7°41’

AR@350-700nm

4°

In stock



$35.83



373514

Parameter list

Φ25.0mm

7°41’

AR@600-1100nm

4°

In stock



$38.33



373515

Parameter list

Φ25.0mm

7°41’

AR@900-1700nm

4°

In stock



$38.33



373516

Parameter list

Φ25.0mm

11°21’

Uncoated

6°

In stock



$29.17



373517

Parameter list

Φ25.0mm

11°21’

AR@350-700nm

6°

In stock



$35.83



373518

Parameter list

Φ25.0mm

11°21’

AR@600-1100nm

6°

In stock



$38.33



373519

Parameter list

Φ25.0mm

11°21’

AR@900-1700nm

6°

In stock



$38.33



More products >>

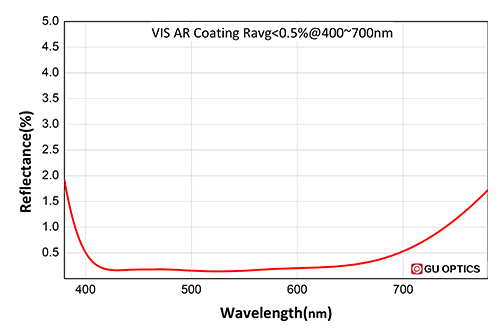

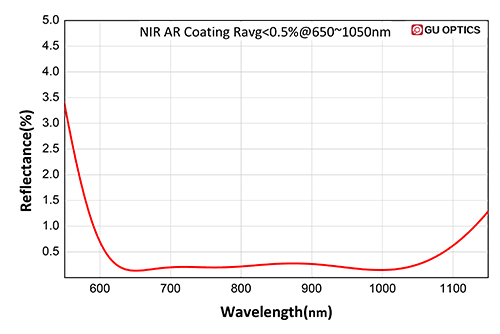

Curve download

H-K9L Roof Prisms

H-K9L Corner Retroreflectors

UV Fused Silica Corner Retroreflectors

UV Fused Silica High Precision Wedge Prisms
