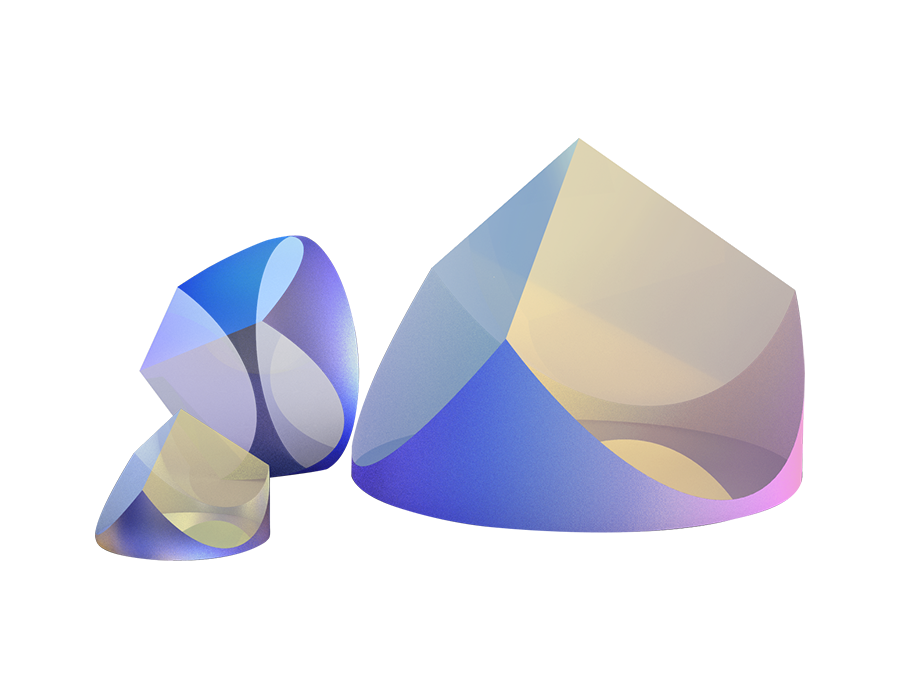

H-K9L Corner Retroreflectors
Corner prism  Retroreflectors are ideal for alignment to return incident light back to the light source.
H-K9L Corner Retroreflectors
Material H-K9L Optical Glass
Diameter (D) Tolerance +0.0/-0.1mm
Height(H)Tolerance ±0.2mm
Beam Deviation As product list
Surface Accuracy λ/10 @ 632.8nm
Surface Quality 40-20
Bevel ＜0.25mmX45°
Coating As product list

Beam Deviation

Dia

H

Incident Surface

Clear
Pro No.
Parameter
Beam Deviation
Dia
H
Incident Surface
Delivery time
Compare
Price
Purchase
371500
Parameter list
<10”
Φ8.0mm
6.0mm
Uncoated
In stock
$91.67
371501
Parameter list
<3”
Φ10.0mm
9.0mm
Uncoated
In stock
$91.67
371502
Parameter list
<3”
Φ15.0mm
11.3mm
Uncoated
In stock
$91.67
371503
Parameter list
<3”
Φ25.4mm
19.0mm
Uncoated
In stock
$108.33
371504
Parameter list
<10”
Φ25.4mm
19.0mm
Uncoated
In stock
$91.67
371505
Parameter list
<3”
Φ38.0mm
28.5mm
Uncoated
In stock
$125.00
371506
Parameter list
<3”
Φ50.0mm
42.0mm
Uncoated
In stock
$145.83
371507
Parameter list
<3”
Φ50.8mm
37.5mm
Uncoated
In stock
$145.83
371508
Parameter list
<5”
Φ62.2mm
47.9mm
Uncoated
In stock
$158.33
371509
Parameter list
<10”
Φ65.0mm
39.12mm
Uncoated
In stock
$91.67
371510
Parameter list
<10”
Φ72.5mm
52.35mm
Uncoated
In stock
$125.00
371511
Parameter list
<10”
Φ8.0mm
6.0mm
Ravg<0.5%@400~700nm
In stock
$108.33
371512
Parameter list
<3”
Φ10.0mm
9.0mm
Ravg<0.5%@400~700nm
In stock
$108.33
371513
Parameter list
<3”
Φ15.0mm
11.3mm
Ravg<0.5%@400~700nm
In stock
$112.50
371514
Parameter list
<3”
Φ25.4mm
19.0mm
Ravg<0.5%@400~700nm
Consult
$129.17
371515
Parameter list
<10”
Φ25.4mm
19.0mm
Ravg<0.5%@400~700nm
In stock
$112.50
371516
Parameter list
<3”
Φ38.0mm
28.5mm
Ravg<0.5%@400~700nm
In stock
$145.83
371517
Parameter list
<3”
Φ50.0mm
42.0mm
Ravg<0.5%@400~700nm
In stock
$165.83
371518
Parameter list
<3”
Φ50.8mm
37.5mm
Ravg<0.5%@400~700nm
In stock
$165.83
371519
Parameter list
<10”
Φ72.5mm
52.35mm
Ravg<0.5%@400~700nm
In stock
$165.83
More products >>

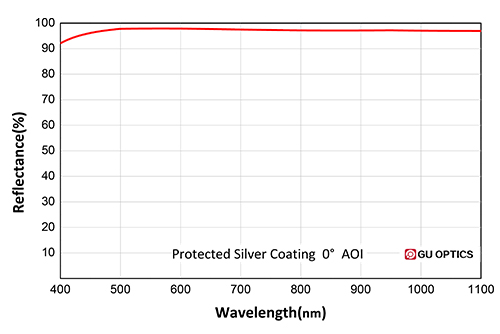

Curve download
