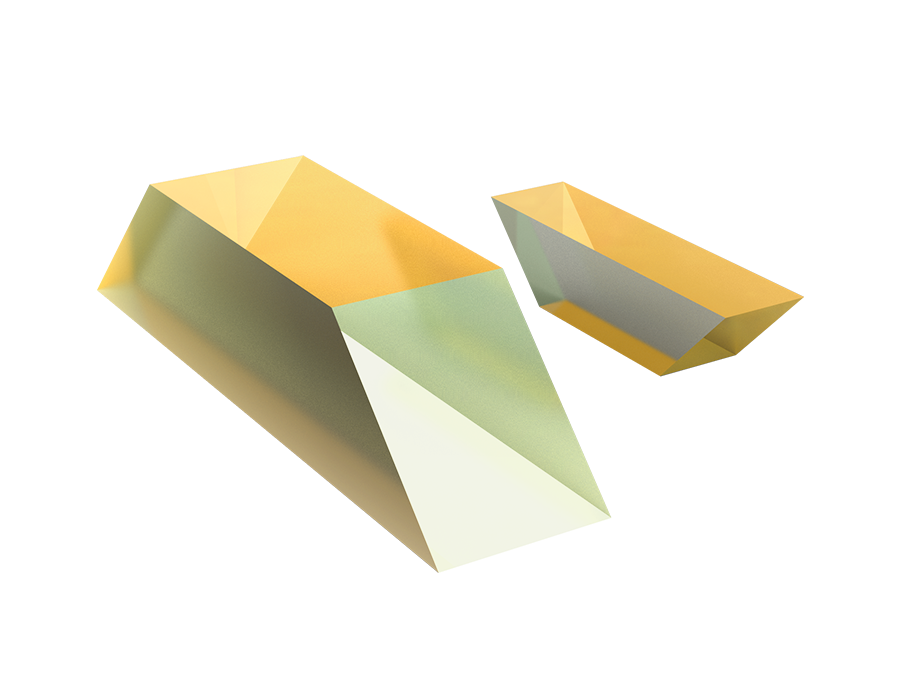

H-K9L Dove Prisms
Dove Prism is an image rotator, the image is rotated by180°when light passes through the prism, the rotation angle of the image is twice that rotated angle of the prism if the prism is rotated around its optical axis. Metal coated Dove prism can replace a retroreflector.
H-K9L Dove Prisms
Material H-K9L Optical Glass
Dimension Tolerance (A,C,h) +0.0/-0.2mm
Surface Accuracy λ/4 @ 632.8nm
Surface Quality 40-20
Angle Tolerance ±3 arcmin
Bevel ＜ 0.25mmX45°
Coating As product list

Size

h

Coating

Surface Accuracy

Clear
Pro No.
Parameter
Size
h
Coating
Surface Accuracy
Delivery time
Compare
Price
Purchase
367500
Parameter list
A=5.0mm B=7.07mm C=21.1mm
5.0mm
Uncoated
λ/4@632.8nm
In stock
$75.00
367501
Parameter list
A=10.0mm B=14.14mm C=42.3mm
10.0mm
Uncoated
λ/4@632.8nm
In stock
$65.83
367502
Parameter list
A=15.0mm B=21.21mm C=63.4mm
15.0mm
Uncoated
λ/4@632.8nm
In stock
$65.83
367503
Parameter list
A=20.0mm B=28.28mm C=80.0mm
20.0mm
Uncoated
λ/4@632.8nm
In stock
$99.17
367504
Parameter list
A=5.0mm B=7.07mm C=21.1mm
5.0mm
Incident-Surface&Exit-Surface-VIS-AR-Coated
λ/4@632.8nm
In stock
$91.67
367505
Parameter list
A=10.0mm B=14.14mm C=42.3mm
10.0mm
Incident-Surface&Exit-Surface-VIS-AR-Coated
λ/4@632.8nm
In stock
$82.50
367506
Parameter list
A=15.0mm B=21.21mm C=63.4mm
15.0mm
Incident-Surface&Exit-Surface-VIS-AR-Coated
λ/4@632.8nm
In stock
$82.50
367507
Parameter list
A=20.0mm B=28.28mm C=80.0mm
20.0mm
Incident-Surface&Exit-Surface-VIS-AR-Coated
λ/4@632.8nm
In stock
$115.83
