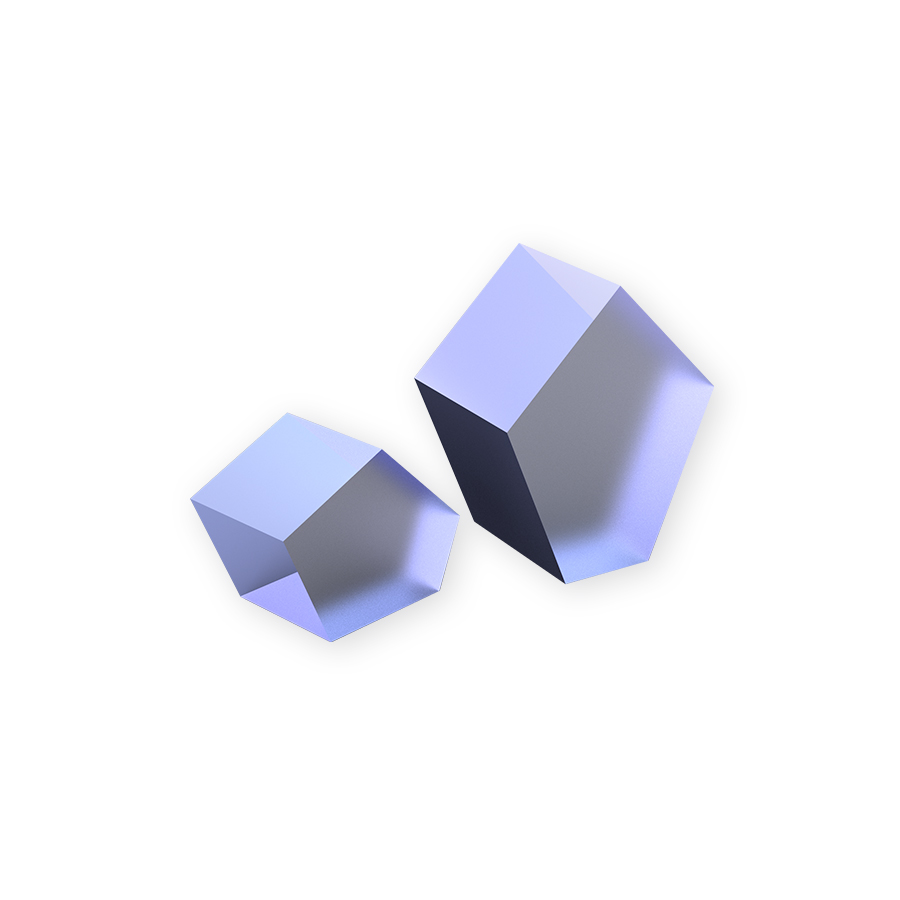

Penta Prisms A=B=C=5.0mm D=5.45mm H-K9L Optical Glass





Share

WeChat

Scan and add Wechat

Penta Prisms A=B=C=5.0mm D=5.45mm H-K9L Optical Glass

Price Option

Product No. 365500

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

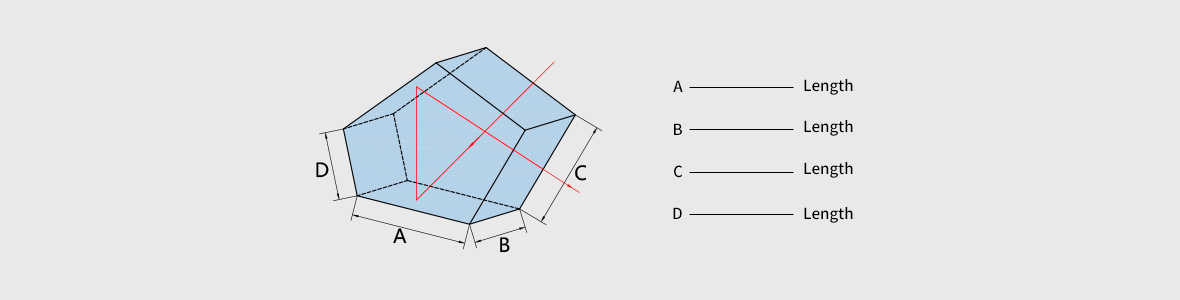

Size(A B C) A=B=C=5.0mm

Dia(D) 5.45mm

Coating：Reflected surface Aluminum-Coated+Black-paint-protected

Coating：Incident surface and emitted Surface single-layer-MgF2-AR-coated

Dimensions Tolerance +0.0/-0.2mm

Surface Accuracy λ/10@632.8nm

Surface Quality 40/20-60/40

Bevel <0.25mmX45°

Beam Deviation 90˚±3'

Penta Prisms A=B=C=5.0mm D=5.45mm H-K9L Optical Glass

Penta Prisms A=B=C=5.0mm D=5.45mm H-K9L Optical Glass

Penta Prisms A=B=C=10.0mm D=10.82mm H-K9L Optical Glass

Penta Prisms A=B=C=10.0mm D=10.82mm H-K9L Optical Glass

Penta Prisms A=B=C=20.0mm D=21.65mm H-K9L Optical Glass

Penta Prisms A=B=C=20.0mm D=21.65mm H-K9L Optical Glass

Penta Prisms A=B=C=30.0mm D=32.47mm H-K9L Optical Glass

Penta Prisms A=B=C=30.0mm D=32.47mm H-K9L Optical Glass

Penta prism can deflect light by 90°, it is a five-sided prism, the reflected light is not affected by slight movements of the prism, so it can be used to define right angles in optical systems.
