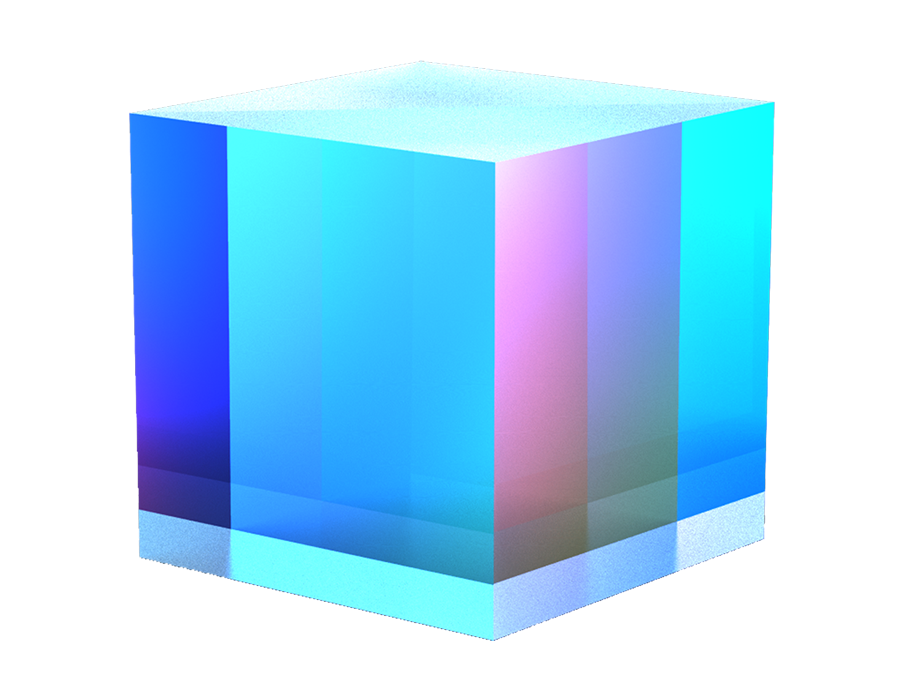

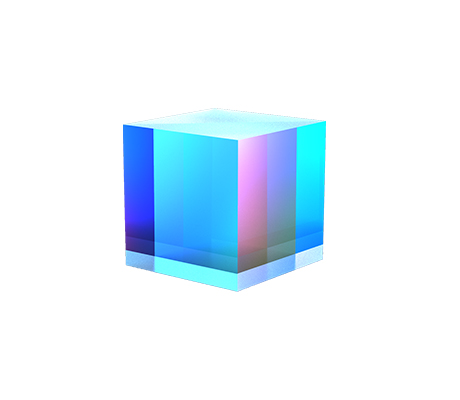

Non-polarizing cube Beamsplitters
Different from energy beamsplitters, the non-polarizing cube beamsplitters split the incident light into transmitted and reflected beams at a standard ratio without changing the polarization state of the incident light. The non-polarizing cube beamsplitters adopt mixed metal and dielectric coating so that the emitted light and the incident light keeps the same polarization state. Please note that the non-polarizing cube beamsplitter adopts special beam splitting coating design so that will have the partial absorption (usually less than 10%) to the incident light . When the laser power is high, it should be noted.
Non-polarizing cube Beamsplitters
Material H-K9L Optical Glass
Surface Accuracy λ/ 10 @ 633 nm
Surface Quality 40-20
Clear Aperture 90%
Transmission Beam Deviation ±5 arcmin
Reflection Beam Deviation 90°±5”
Dimensions Tolerance ±0.2mm
Bevel Protective Bevel
Coating Hypotenuse: Beam Splitting Coating Right Angle Surface:BBAR Coating
Reflection/Transmission Ratio Tolerance R/T ±10% (AVG of Designed Bandwidth)
Overall Performance |TS-TP|<10%
|RS-RP|<10%
Pro No.
Parameter
Cube Size Length
R/T
Right Angle Surface Coating
Hypotenuse Coating
Delivery time
Compare
Price
Purchase
5.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$132.50
10.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$141.67
12.5mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$158.33
15.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$175.00
20.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$175.00
25.4mm
10R/90T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
90R/10T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$191.67
50.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$450.00
5.0mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$132.50
10.0mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$141.67
12.5mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$158.33
15.0mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$175.00
20.0mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$175.00
25.4mm
30R/70T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
50R/50T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
70R/30T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$191.67
25.4mm
90R/10T
BBAR-Coating@700~1100nm
Beam-Splitting-Coating
In stock
$191.67
