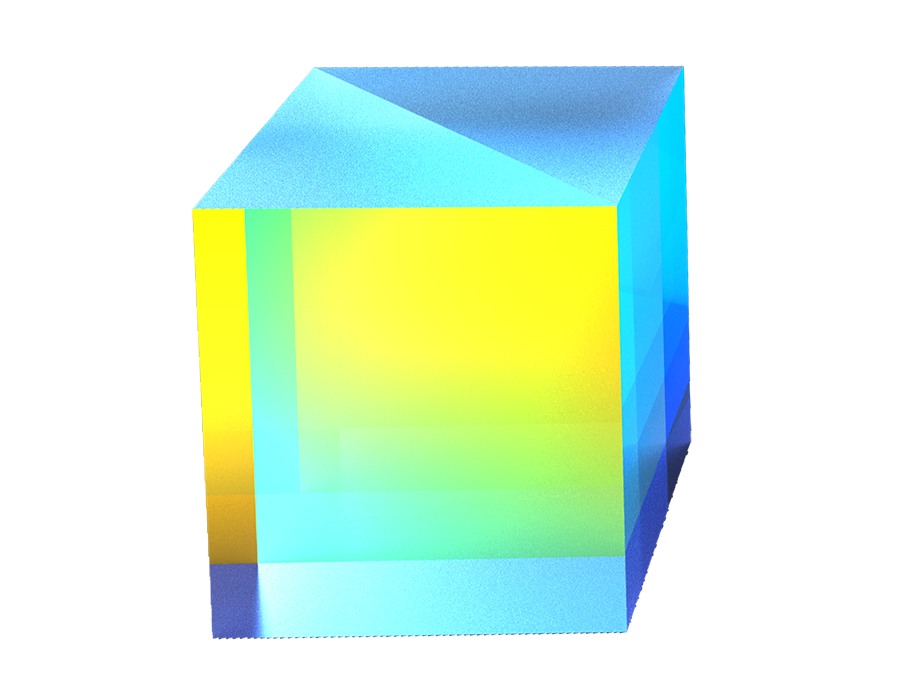

Polarizing Cube Beamsplitters
Compared with Plate Beamsplitters, the optical paths of the reflection and transmission of cube beamsplitters are equal. When transmitting, the light will pass through the cube beamsplitter directly when transmitted, have no affect on beam deviation to the cube beamsplitter. The PBS is used to separate S-polarized light and P –polarized light from the incident light. The P-polarized light of the incident light will be transmitted and the S-polarized light of the incident light will be reflected at the angle of 90°.
Polarizing Cube Beamsplitters
Material H-ZF3
Surface Accuracy λ/ 10 @ 633 nm
Surface Quality 40-20
Clear Aperture 90%
Transmission Beam Deviation ±5 arcmin
Reflection Beam Deviation 90°±5”
Dimensions Tolerance ±0.2mm
Bevel Protective Bevel
Coating Hypotenuse:Beam Splitting Coating Right Angle Surface:BBAR Coating
Transmittance TP >90%
Reflectivity RS>99.5%
Extinction Ratio TP/TS >1000
Pro No.
Parameter
Cube Size Length
Extinction Ratio
Right Angle Surface Coating
Hypotenuse Coating
Delivery time
Compare
Price
Purchase
5.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$158.33
10.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$175.00
12.5mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$175.00
15.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$175.00
20.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$191.67
25.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
In stock
$208.33
50.0mm
TP/TS>1000:1
BBAR-Coating@420~680nm
Beam-Splitting-Coating
Consult
$750.00
5.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$158.33
10.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$175.00
12.5mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$175.00
15.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$175.00
20.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$191.67
25.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
Consult
$208.33
50.0mm
TP/TS>1000:1
BBAR-Coating@620~1000nm
Beam-Splitting-Coating
In stock
$750.00
5.0mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$158.33
10.0mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$175.00
12.5mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$175.00
15.0mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$175.00
20.0mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$191.67
25.0mm
TP/TS>1000:1
BBAR-Coating@900~1300nm
Beam-Splitting-Coating
In stock
$208.33
