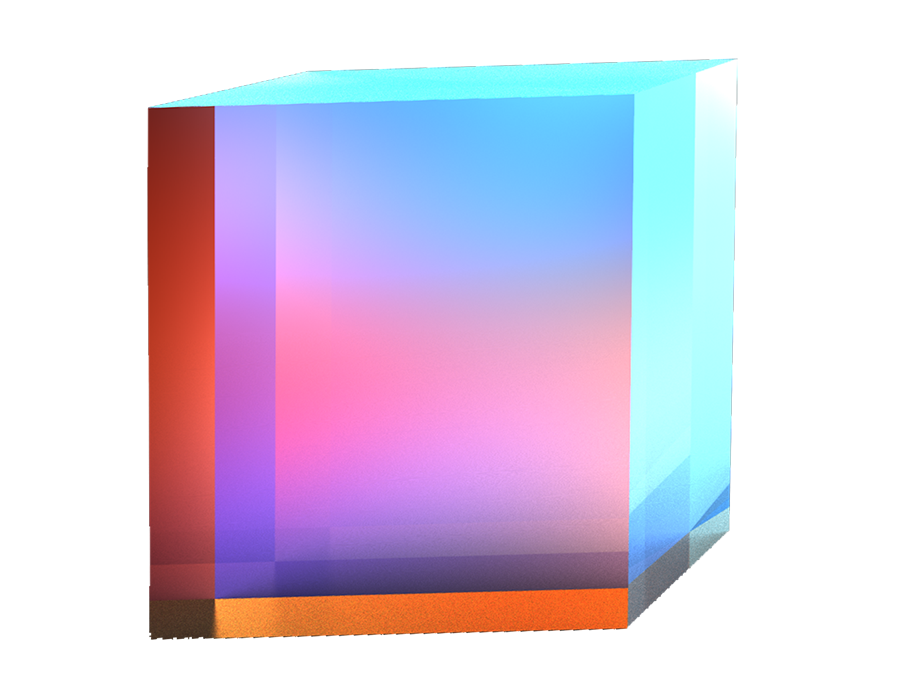

Standard Cube Beamsplitters
Compared with Plate Beamsplitters, the optical paths of the reflection and transmission of cube beamsplitters are equal. When transmitting, the light will pass through the cube beamsplitter directly when transmitted and have no affect on beam deviation to the cube beamsplitter. Cube beamsplitters are ideal for the application of energy splitting and insensitive polarization. The energy is not absorbed as the coating is all dielectric. Please note that the beam splitting coating has a certain polarization effect itself so that the emitted light is partially polarized.
Standard Cube Beamsplitters
Material H-K9L Optical Glass
Surface Flatness λ/ 10 @ 633 nm
Surface Quality 40-20
Clear Aperture 90%
Transmission Beam Deviation ±5 arcmin
Reflection Beam Deviation 90°±5”
Dimensions Tolerance ±0.2mm
Bevel Protective Bevel
Coating Hypotenuse: Beam Splitting Coating Right Angle Surface: BBAR Coating
Reflection/Transmission Ratio Tolerance R/T ±10% (AVG of Designed Bandwidth)
Pro No.
Parameter
Cube Size Length
R/T
Right Angle Surface Coating
Hypotenuse Coating
Delivery time
Compare
Price
Purchase
5.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$97.06
5.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$97.06
5.0mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$97.06
10.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$97.06
10.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$97.06
10.0mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
Consult
$97.06
12.5mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
12.5mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
12.5mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
15.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
15.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
15.0mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$107.84
20.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$116.67
20.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$116.67
20.0mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$116.67
25.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$127.45
25.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$127.45
25.0mm
70R/30T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$127.45
50.0mm
30R/70T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$303.92
50.0mm
50R/50T
BBAR-Coating@400~700nm
Beam-Splitting-Coating
In stock
$303.92
