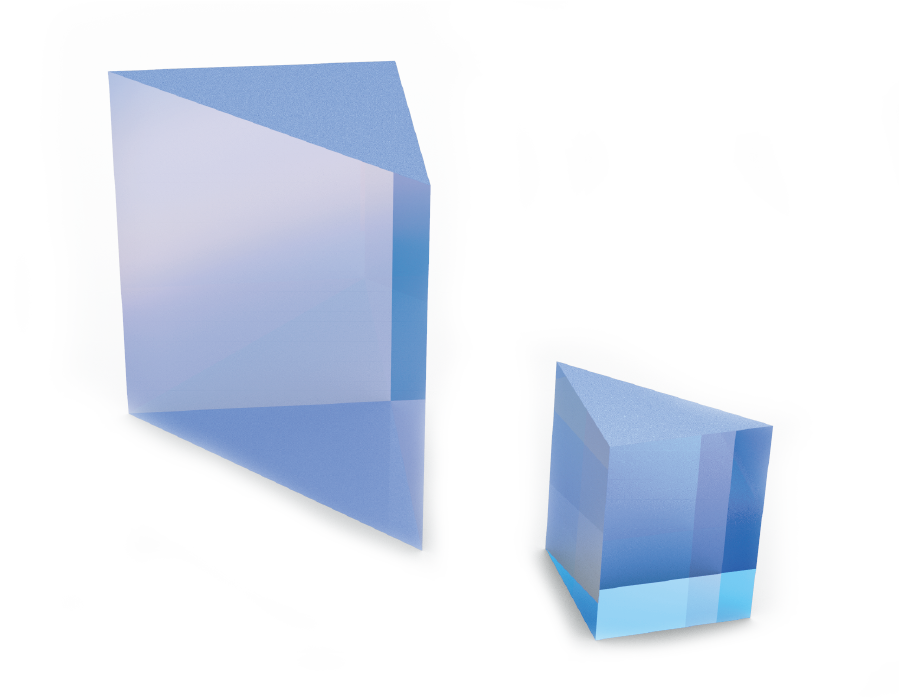

H-K9L High Precision Right Angle Prisms
Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.Grand Unified Optics offers a wide range of right angle prisms for your application
H-K9L High Precision Right Angle Prisms
Material H-K9L Optical Glass
Dimension Tolerance +0.0/-0.1mm
Surface Accuracy λ/10 @ 632.8nm
Surface Quality 10-5
Angle Tolerance ±15arcsec
Pyramid Tolerance ＜5 arcmin
Bevel ＜0.25mmX45°
Coating As product list

Size

Coating

Material

Surface Accuracy

Clear
Pro No.
Parameter
Size
Coating
Material
Surface Accuracy
Delivery time
Compare
Price
Purchase
355552
Parameter list
A=B=C=1.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$42.50
355553
Parameter list
A=B=C=2.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$42.50
355554
Parameter list
A=B=C=5.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$29.17
355555
Parameter list
A=B=C=6.3mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$29.17
355556
Parameter list
A=B=C=8.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$29.17
355557
Parameter list
A=B=C=10.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$29.17
355558
Parameter list
A=B=C=12.5mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$34.17
355559
Parameter list
A=B=C=15.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$39.17
355560
Parameter list
A=B=C=20.0mm
Uncoated
H-K9L
λ/10@632.8nm
Consult
$39.17
355561
Parameter list
A=B=C=25.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$42.50
355562
Parameter list
A=B=C=30.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$58.33
355563
Parameter list
A=B=C=40.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$91.67
355564
Parameter list
A=B=C=50.0mm
Uncoated
H-K9L
λ/10@632.8nm
In stock
$125.00
355565
Parameter list
A=B=C=5.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$41.67
355566
Parameter list
A=B=C=6.3mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$41.67
355567
Parameter list
A=B=C=8.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$41.67
355568
Parameter list
A=B=C=10.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$41.67
355569
Parameter list
A=B=C=12.5mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$46.67
355570
Parameter list
A=B=C=15.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
In stock
$51.67
355571
Parameter list
A=B=C=20.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(VIS-AR-Coated)
H-K9L
λ/10@632.8nm
Consult
$51.67
