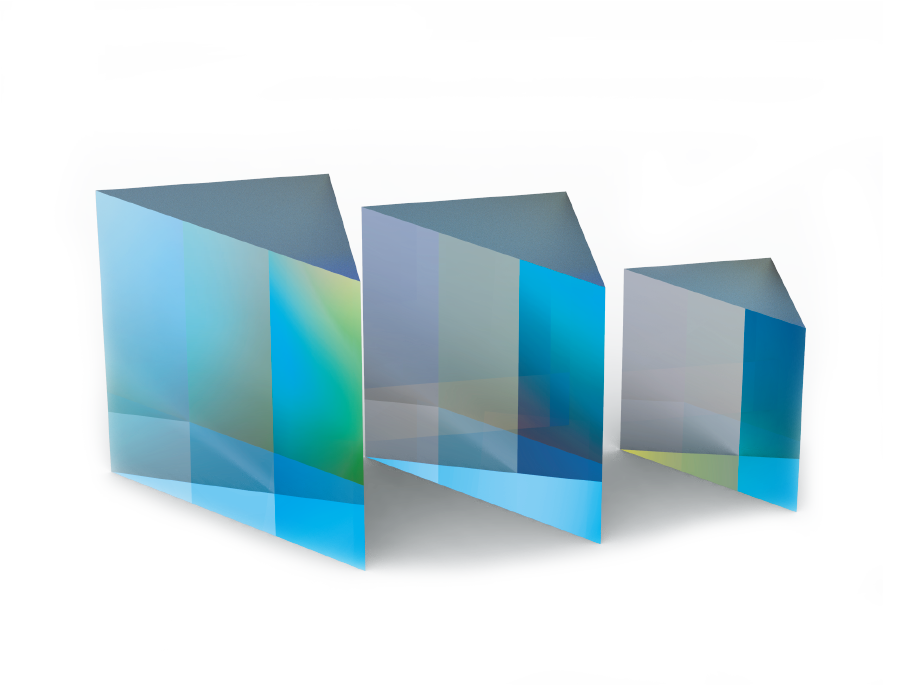

UV Fused Silica Standard Precision Right Angle Prisms
Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.Grand Unified Optics offers a wide range of right angle prisms for your application.
- Material UV Fused Silica
- Dimension Tolerance +0.0/- 0.2mm
- Surface Accuracy λ/4 @632.8mm
- Surface Quality 40-20
- Angle Tolerance ±3 arcmin
- Pyramid Tolerance ＜10 arcmin
- Bevel 0.2~0.5mmX45°
- Coating As product list
Size
Material
Surface Accuracy
Pro No.
Parameter
Size
Coating
Material
Surface Accuracy
Delivery time
Compare
Price
Purchase
A=B=C=5.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$69.23
A=B=C=6.3mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$70.77
A=B=C=10.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$76.92
A=B=C=12.5mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$80.77
A=B=C=15.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$89.23
A=B=C=20.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$100.77
A=B=C=25.0mm
Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)
JGS1
λ/4@632.8nm
In stock
$137.69
