Home  Products  UV Fused Silica Standard Precision Right Angle Prisms  355619

Right Angle Prisms A=B=C=20.0mm UV UV Fused Silica(JGS1)





  Likes

Share

WeChat

Scan and add Wechat

Right Angle Prisms A=B=C=20.0mm UV UV Fused Silica(JGS1)

Price Option

Product No. 355619

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Size A=B=C=20.0mm

Coating Hypotenuse(Aluminum-Coated)+Right-Angled-Surface(UV-AR-Coated)

Material JGS1

Surface Accuracy λ/4@632.8nm

Angle Tolerance ±3arcmin

Surface Quality 40/20-60/40

Dimensions Tolerance +0.0/- 0.2mm

Pyramid ToleranceAngle Tolerance ＜10 arcmin

Bevel 0.2~0.5mmX45°

Right Angle Prisms A=B=C=25.0mm UV UV Fused Silica(JGS1)

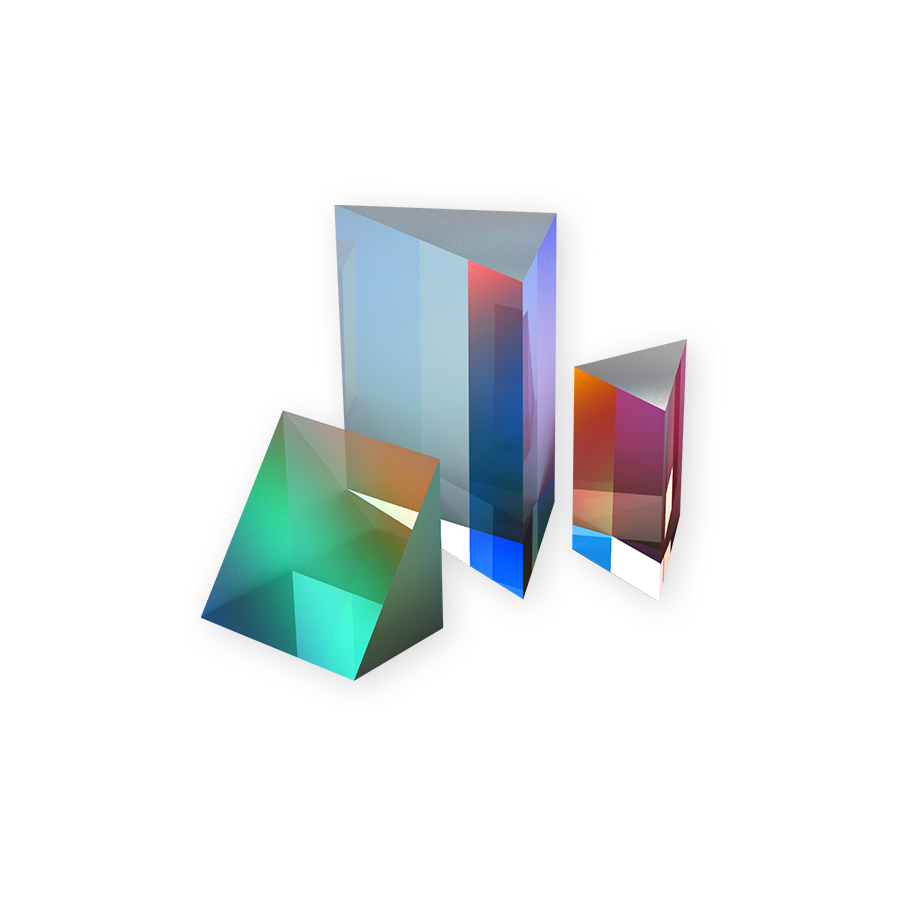

Right Angle Prisms A=B=C=5.0mm Uncoated UV Fused Silica(JGS1)

Right Angle Prisms A=B=C=6.3mm Uncoated UV Fused Silica(JGS1)

Right Angle Prisms A=B=C=10.0mm Uncoated UV Fused Silica(JGS1)

The right angle prisms are typically used to bend the image path or turn the light path 90°，combing two right angle prism also can combine the image and deflect the beam. We suggest that you use the right angle prism with Hypotenuse aluminum coated for the application of large AOI. Image Optics offers a wide range of right angle prisms for your application. Right angle prisms are typically used to bend the image path or turn the light path by 90°.Combining two right angle prisms can also combine the image and deflect the beam. We suggest that use the right angle prism with Hypotenuse aluminum coated for the application of large AOI.Grand Unified Optics offers a wide range of right angle prisms for your application.
