Home  Products  Non-polarizing cube Beamsplitters  354503

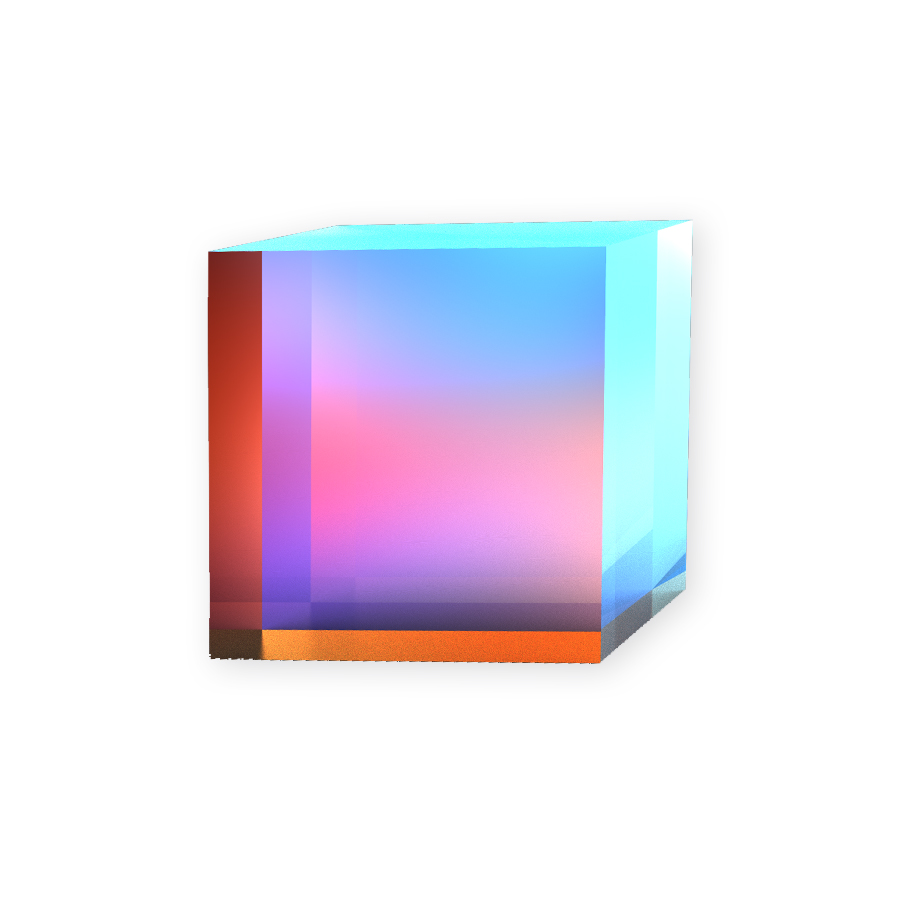

Non-polarizing Cube Beamsplitters 15.0mm 50R/50T VIS H-K9L Optical Glass





  Likes

Share

WeChat

Scan and add Wechat

Non-polarizing Cube Beamsplitters 15.0mm 50R/50T VIS H-K9L Optical Glass

Price Option

Product No. 354503

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Cube Size Length 15.0mm

R/T 50R/50T

Right Angle Surface Coating BBAR-Coating@400~700nm

Hypotenuse Coating Beam-Splitting-Coating

Material H-K9L Optical Glass

Surface Accuracy λ/10 @ 633 nm

Surface Quality 40/20-60/40

Clear Aperture 90%

Dimensions Tolerance ±0.2mm

Reflection/Transmission Ratio Tolerance R/T ±10% (AVG of Designed Bandwidth)

Transmission Beam Deviation ±5arcmin

Reflection Beam Deviation 90°±5'

Bevel Protective Bevel

Reflection/Transmission Ratio Tolerance(1) |TS-TP|＜10%; |RS-RP|＜10%

Non-polarizing Cube Beamsplitters 20.0mm 50R/50T VIS H-K9L Optical Glass

Non-polarizing Cube Beamsplitters 25.4mm 10R/90T VIS H-K9L Optical Glass

Non-polarizing Cube Beamsplitters 25.4mm 30R/70T VIS H-K9L Optical Glass

Non-polarizing Cube Beamsplitters 25.4mm 50R/50T VIS H-K9L Optical Glass

Different from energy beamsplitters, the non-polarizing cube beamsplitters split the incident light into transmitted and reflected beams at a standard ratio without changing the polarization state of the incident light. The non-polarizing cube beamsplitters adopt mixed metal and dielectric coating so that the emitted light and the incident light keeps the same polarization state. Please note that the non-polarizing cube beamsplitter adopts special beam splitting coating design so that will have the partial absorption (usually less than 10%) to the incident light . When the laser power is high, it should be noted.
